Tiering a BX600 Digital KVM Switch from a KVMs3-1621 or

To configure the KVM appliance:

Press Print Screen to open the OSCAR Main dialog box.

Click Setup then click Devices and then click Device Modify.

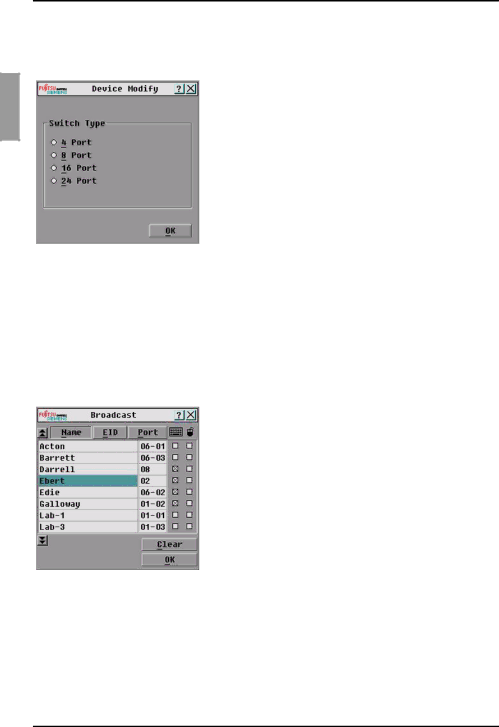

Figure 5: Device Modify Dialog Box

Select the 10-port option to match the number of slots in the BX600 blade chassis. If the 10-port option is not available, select the 16-port option.

Click OK to exit OSCAR.

Press Print Screen to verify that the settings have taken effect. The slot number of the blade to which the BX600 Digital KVM Switch is now attached should be expanded to display each of the slot locations of the servers in the BX600 blade chassis. For example, if the BX600 Digital KVM Switch is attached to slot 1, it would now be displayed as 01-01 to 01-10.

Figure 6: Main Dialog Box.

2.2.1Tiering a BX600 Digital KVM Switch from a KVMs3-1621 or KVMs2-0411 Console Switch

To tier a BX600 Digital KVM Switch from an Fujitsu Siemens s3-1621 Console Switch:

Connect one end of a CAT5 cable to an ARI port on the Fujitsu Siemens s3-1621 Console Switch.

8

590-673-501A
