NPort 5400 Series User’s Manual

Initial IP Address Configuration

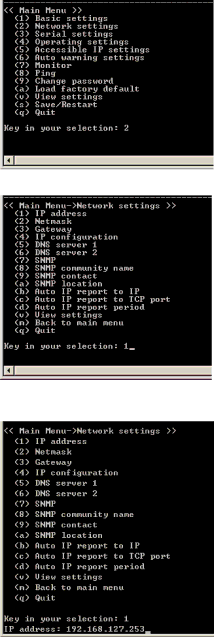

4.Type 2 to select Network settings, and then press Enter.

5.Type 1 to select IP address and then press Enter.

6.Use the Backspace key to erase the current IP address, type in the new IP address, and then press Enter.

3-7
