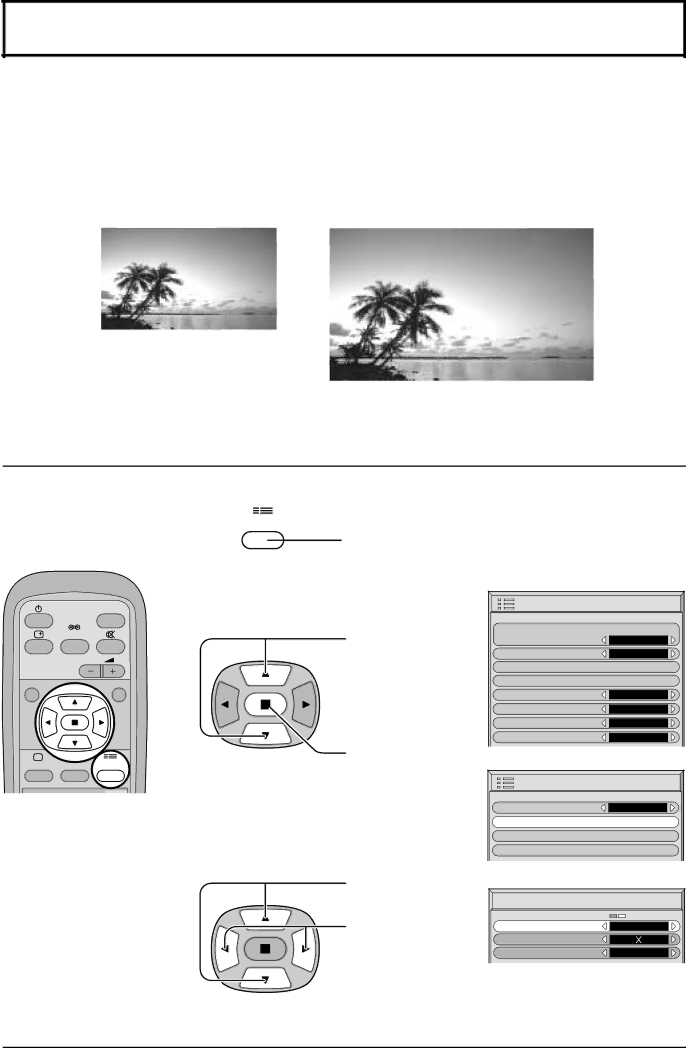

Setup for MULTI DISPLAY

By lining up Plasma Displays in groups of 4 or 9 as illustrated below, an enlarged picture may be displayed across all screens.

For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

group of 4 (22)

group of 9 (33)

















































































































































































































































































How to Setup MULTI DISPLAY

1

SET UP



Press to display the Setup menu screen.





INPUT





SURROUND



2





VOL

N



R




SOUND

SET UP



MULTI



ZOOM



3

Press to select the

MULTI DISPLAY Setup.

Press to display the

“MULTI DISPLAY Setup” menu.

Press to select the MULTI DISPLAY Setup.

Press to select “On” or “Off”.

Setup



1/2

Component/RGB-in select

RGB



Input label

RGB1

Signal





Screensaver





Power save

Off



Standby save

On



Power management

Off



OSD Language

English (UK)

Setup



2/2

Auto power off

Off



MULTI DISPLAY Setup



Set up TIMER





PRESENT TIME Setup



MULTI DISPLAY Setup





MULTI DISPLAY Setup

On



Ratio

2

2

Location

A1



28
