Note: Some

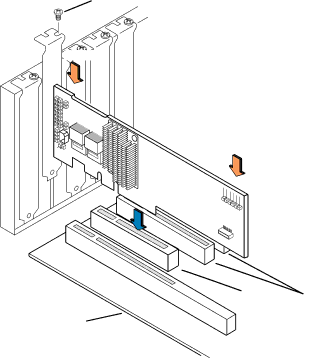

Figure 2.1 Example of the MegaRAID SAS 9260-8i Board
Installation in a PCI Express Slot
Bracket Screw
Press here
Edge of
Motherboard
Press here
(3.3 V)
Step 5. Configure and Install the SAS Devices, SATA II Devices, or
Both in the Host Computer Case
Refer to the documentation for the devices for any preinstallation configuration requirements.
Step 6. Connect the RAID Controller to the Devices
Use SAS cables to connect SAS devices, SATA II devices, or both to the MegaRAID 6Gb/s SAS RAID controller.
See Section 2.5, “SAS Device Cables and Connectors” for SAS cable and connector information. See Section 2.5.1, “Connecting a SAS RAID Controller with Internal Connectors to Drives,” for information about connecting the controller to drives.
