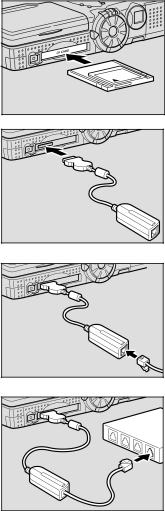

■Connecting Procedure

A Check that the PC and the camera are turned off.

B Insert the LAN connection CF card into the CF card slot of the camera.

C Insert the connection cable into the

LAN connection CF card.

D Insert the connector on the other end of the connection cable into the connector of the LAN cable.

E Insert the connector on the other end of the LAN cable into the free terminal of the LAN hub.

Connection of the camera to the LAN is now completed.
