Main Menu

The M ain Me nu p rovides t he s tandard s et of menu o ptions, in cluding th e s ettings th at ar e changed le ss frequently. Th e Main M enu is organized under the following tabs to h elp you find a sp ecific menu item quickly: Alarms, Sonar, and Setup.

NOTE: Menu options can be expanded or simplifiedby setting the User Mode t o Advanced or Normal. See Main Menu: User Mode for details.

Main Menu

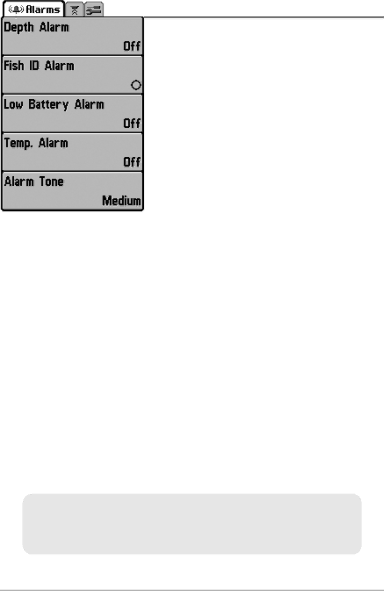

Normal User Mode

To use the Main Menu:

1.In any view, press the MENU key twiceto open the Main Menu.

2.Press the RIGHT or LEFT Cursor keys to highlight a menu tab.

3.Press the D OWN or UP Cur sor keys to select a sp ecific menu option under that tab.

4.Press the RIGHT or LEFT Cursor keys again to change a menu setting.

•A down arrow at the bottom of amenu means that you canscroll to additional menu options using the DOWNCursor key.

•A rightor left arrowon a menu option means that you can use the RIGHT or LEFT Cursor keys to make changes or to see more information.

•Press the EXIT key to move quicklyto the top of the tab.

Total Screen Update - When you change any menu settings that affect the current view, the view will update immediately (i.e. you don’t have to exit the menu to apply the change to the screen).
