Humminbird 596c, 586c manual Alarms Menu Tab

Page 45

Alarms Menu Tab

From a ny vie w, press th e M ENU ke y tw ice to access the Main Menu. The Alarms tab will be the default selection.

NOTE: When an alarm is triggered, you can silence it by pressing any key. The alarm will be silenced, and will not be triggered again until a new instance of the alarm condition is detected.

NOTE: Menu options can be expanded or simplified by setting the User Mode to Advanced or Normal. See Main Menu: User Mode for details.

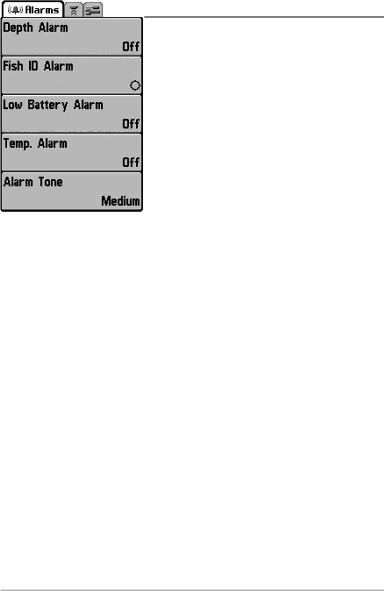

Alarms Menu

37	Alarms Menu Tab
