Pride Mobility SC4001, SC4401 manual Rear Section, Anti-Tip Wheels

Page 21

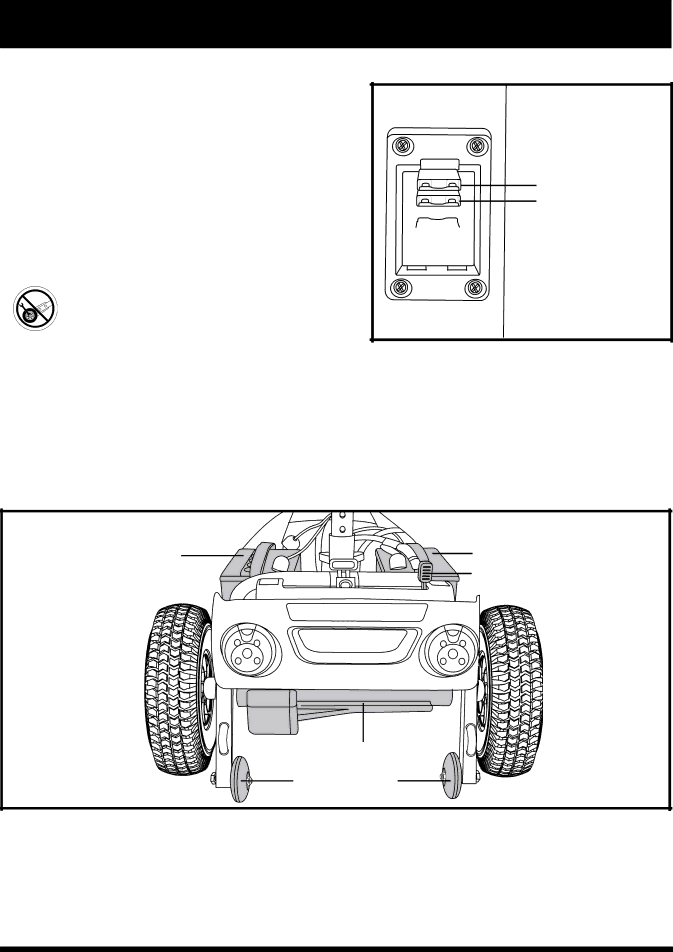

Figure 7. Tiller Console Fuses

I I I . Y O U R S C O O T E R

REAR SECTION

The batteries, main circuit breaker (reset button), man- ual freewheel lever, anti-tip wheels, and motor/ transaxle assembly are located on the rear section of your scooter. See figure 8.

Anti-Tip Wheels

The anti-tip wheels are an integral and important safety feature of your scooter. They are bolted to the frame at the rear of the scooter.

PROHIBITED! Do not remove the anti- tip wheels or modify your scooter in any way that is not authorized by Pride.

SPARE

RUNNING LIGHTS

LOWER HEAD LIGHT

LEFT TURN SIGNAL RIGHT TURN SIGNAL

Batteries

The batteries store the electrical energy that powers your scooter. See IV. “Batteries and Charging ” for information on how to charge your scooter batteries.

Motor/Transaxle Assembly

The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your scooter’s batteries into the controlled mechanical energy that drives the scooter’s wheels.

BATTERY

BATTERY



MANUAL FREEWHEEL LEVER



MOTOR/TRANSAXLE ASSEMBLY



ANTI-TIP WHEELS

Figure 8. Rear Section

Celebrity X

www.pridemobility.com

21
