Pride Mobility SC4001 Positioning Belt Optional, To install the positioning belt if required

Page 33

V I . C O M F O R T A D J U S T M E N T S

POSITIONING BELT (OPTIONAL)

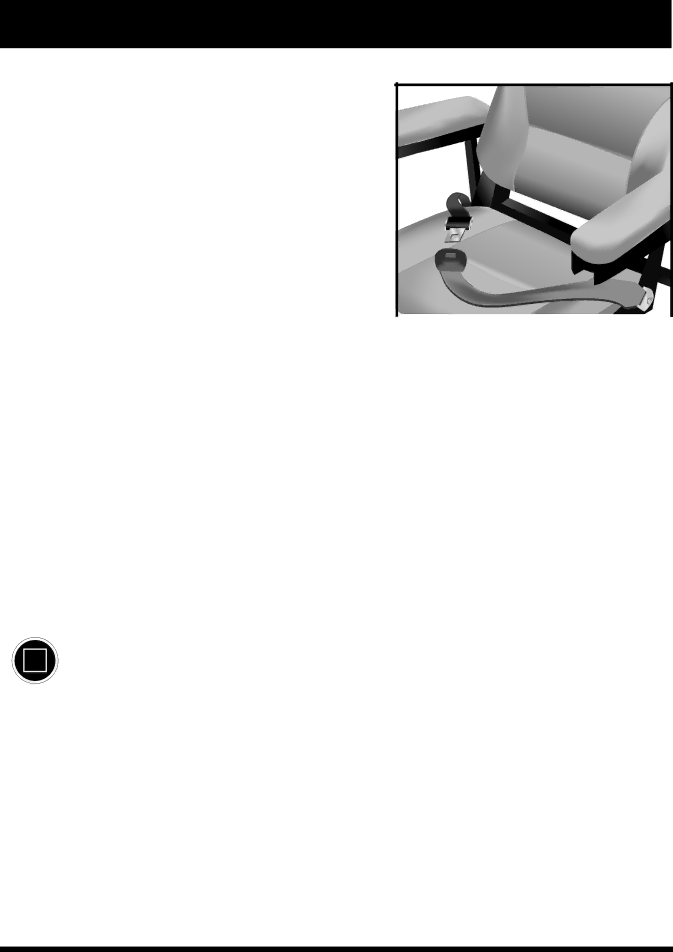

Your scooter seat may be equipped with an auto-type posi- tioning belt that can be adjusted for operator comfort. See figure 19. The positioning belt is designed to help support the operator so that he/she does not slide down or forward in the seat. The positioning belt is not designed for use as a restraining device.

To install the positioning belt (if required):

1.Remove the seat from your scooter.

2.Place the seat upside down so that you can see the bot- tom of the seat base.

3.Remove the two bolts on the outermost part of the rear

		seat mounting strap.	Figure 19. Positioning Belt
	4.	Insert the bolt through the appropriate end of the posi-	Figure 19. Positioning Belt
	4.	Insert the bolt through the appropriate end of the posi-
		tioning belt and then through the seat mounting strap
		for each side of the scooter seat.
	5.	Tighten the bolts.

To adjust the positioning belt for operator comfort:

1.Insert the metal tab on the right side of the belt into the plastic housing on the opposite strap until you hear a “click.”

2.Pull the strap on the right side of the belt until it is secure, but not so tight as to cause discomfort.

To release the positioning belt:

1. Press the push button mechanism on the plastic housing.

MANDATORY! Make sure the positioning belt is properly secured to the scooter and is adjusted for operator comfort.

MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the scooter. If you discover a problem, contact your authorized Pride Provider for maintenance and repair.
