V I I . D I S A S S E M B L Y A N D A S S E M B L Y

DISASSEMBLY







REAR SECTION



You can disassemble the scooter into seven pieces:







the seat, the front section, the rear section, the rear





shroud, the basket, and the batteries. See figure 20.





No tools are required to disassemble or assemble





your scooter, but keep in mind that the disassem-



SEAT

bled sections of the scooter take up more floor







space than the assembled unit. Always disassem-





ble or assemble your scooter on a level, dry surface





with sufficient room for you to work and move



BATTERIES

around your scooter—about 6 feet (2 meters) in all



REAR



directions. Remember that some scooter compo-

FRONT SECTION

nents are heavy and you may need assistance when

SHROUD



lifting them.









BASKET











WARNING! Do not lift beyond your





physical

capability.

Ask

for

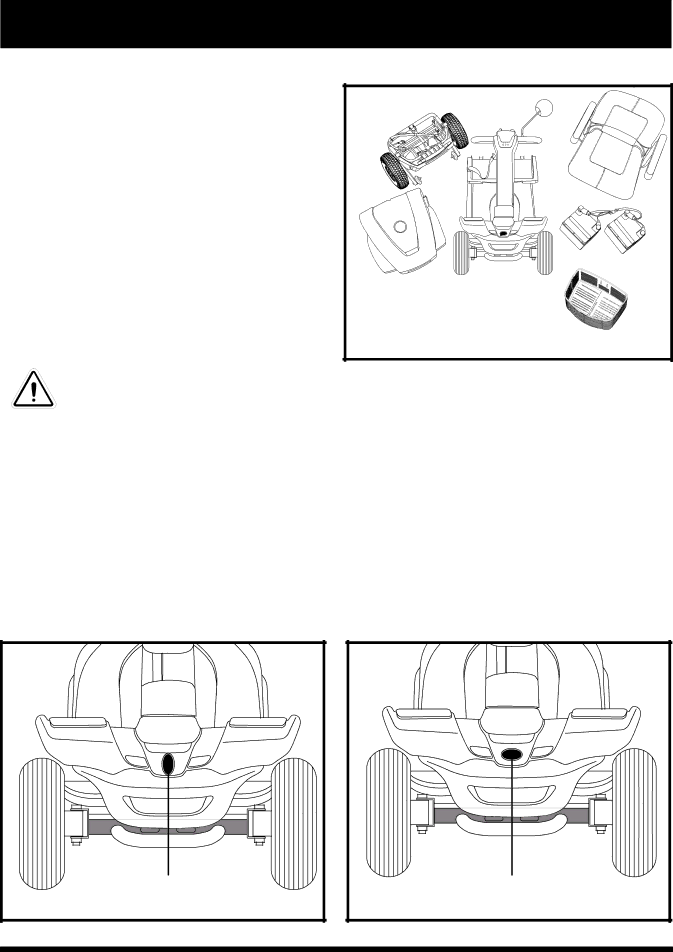

Figure 20. The Scooter Disassembled

assistance when necessary while





disassembling or assembling your





scooter.











1.Place the scooter in drive mode by engaging the freewheel lever.

2.Lock the tiller in the straight ahead position by pushing the tiller lock knob in and turning it clockwise 90°. See figure 21. The front wheel must face forward in order to lock the tiller.

3.Remove the seat by lifting it straight up and off of the scooter. If you encounter resistance when removing the seat, disengage the seat rotation lever and swivel the seat back and forth while lifting up on the seat.

4.Gently pull the rear shroud up and off of the rear section of the scooter.

5.Unplug the front-to-rear and rear lighting harnesses by squeezing the sides and pulling straight up.

6.Unplug both battery harnesses. Pull each harness straight up. See figure 22.

7.Unfasten the battery tie-down straps and remove the batteries from the battery wells.

LOCKED POSITION

Figure 21. Tiller Lock Knob (Locked)

UNLOCKED POSITION

Figure 21A. Tiller Lock Knob (Unlocked)

Celebrity X

www.pridemobility.com

35
