Invacare OCMK78, OCMK01 operating instructions Adjusting the Contour U Seat Height Figure

Page 14

ADJUSTING THE ON CHAIR MOUNTING KIT MOUNTING HARDWARE FOR THE CONTOUR U SEATING SYSTEM SEAT

NOTE: Refer to GENERAL and INSTALLATION

DETAIL "A"

WARNINGS in the SAFETY SUMMARY in this in-

struction sheet.

J Bracket

ADJUSTING THE CONTOUR U SEAT HEIGHT (FIGURE 11)

NOTE: There are six (6) height adjustments avail- able on the ContourU seat with a seat pan.

NOTE: There are twelve (12) height adjustments available on the ContourU seat with a wood back. Six (6) mounting positions with the L brackets fac- ing the front of the wheelchair and six (6) mounting positions with the L brackets facing the rear of the wheelchair.

NOTE: All four (4) J brackets must be adjusted to the same height unless seat angle adjustments are necessary. Refer to ADJUSTING THE CONTOUR U SEATING SYSTEM SEAT ANGLE in this instruction sheet after performing this procedure.

1.If necessary, remove the ContourU seat. Refer to REMOVING/INSTALLING THE CONTOUR U SEATING SYSTEM SEAT in this instruction sheet.

2.Remove the two (2) mounting screws and locknuts that secure the J bracket to the L bracket.

3.Align two (2) mounting holes of the J bracket with two (2) mounting holes of the L bracket to acquire the desired height as shown in DETAIL “A” of FIGURE 11 .

4.Reinstall the two (2) mounting screws and locknuts that secure the J bracket to the L bracket. Securely tighten.

5.Repeat STEPS 3-4 to adjust the remaining three (3) J and L brackets.

6.Reinstall the ContourU seat onto the wheelchair. Refer to REMOVING/IN-

STALLING THE CONTOUR U SEATING SYSTEM SEAT in this instruction sheet.

7.Ensure the ContourU seat is set to the desired height. If necessary repeat STEPS 1-7 until desired height is achieved.

Locknuts



L Bracket

Mounting Screws

Mounting Holes



DEPTH ADJUSTMENTS

Pan or Wood Back Additional Positions For Wood Back Only

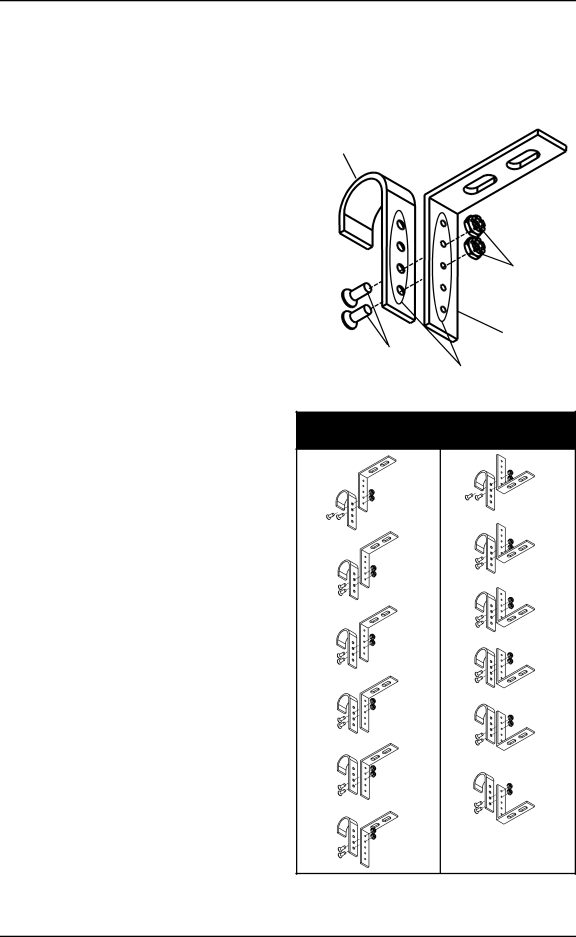

FIGURE 11 - ADJUSTING THE CONTOUR U SEATING SYSTEM SEAT HEIGHT

14
