ASSEMBLY

Tools Required for Assembly

1 - 9/16” socket or open end wrench

1 - electric drill

Unpacking

1.Remove all packaging.

It may be neces- sary to brace or

support one side of the outfit when removing the pallet because the air compressor will have a tendency to tip.

2.Remove and discard the (4) screws and washers holding the compressor to the pallet.

3.With the help of another person carefully remove air compressor from pallet and place on a level surface.

To Add Oil To Pump

Compressors are shipped without oil.

A small amount of oil may be pres- ent in the pump upon receipt of the air compressor. This is due to plant testing and does not mean the pump contains oil. Do not attempt to operate this air compressor without first adding oil to the crankcase. Serious damage can result from even limited operation unless filled with oil and broken in correctly. Make sure to closely fol- low initial start-up procedures.

Multi-Viscosity motor oils, like

10W 30, should not be used in an air compressor. They leave carbon deposits on critical components, thus reducing performance and compressor life. Use air compres- sor oil only.

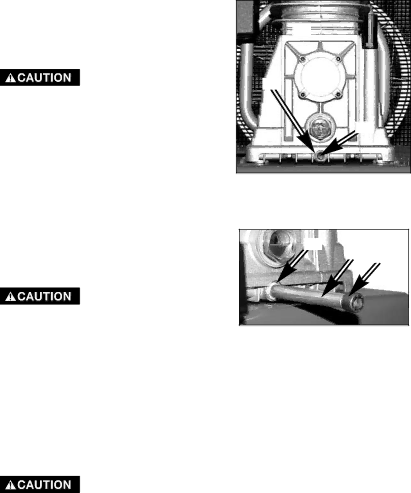

1.Remove the oil drain plug (B) and washer (C).

2.Obtain the drain plug extension (D), from the parts bag.

A

C

B

3.Apply thread sealant tape to the threads of the drain plug exten- sion (D).

C

D B

4.Assemble the washer (C), drain plug extension (D), and drain plug (B) as shown in Figure.

5.Tighten securely.

6.Remove the oil fill plug (A.

7.Fill the crankcase with the rec- ommended oil. NOTE: Use an air compressor oil such as SAE-30 (API CG/CD heavy duty motor oil). Under extreme winter condi- tions use SAE-20 weight oil.

8.Replace the oil fill plug (A) and tighten securely.

9-ENG

D26161
