8. Place the lower glass into the light fitter, aligning the three flat areas on the top flange of the lower glass with the three pins on the inside of the fitter (Figure 19). Then turn the lower glass clock- wise until it stops turning.

9. Your ceiling fan is now installed and wired to be controlled by your remote control system.

MED LOW

HIOFF

Operating Your

Ceiling Fan

IMPORTANT

Fan installation must be completed, including the installation of the fan blades, before testing of the remote control.

Your remote control (Figure 20) has full control of your fan and light. However, air- flow direction is controlled by a slide switch on the switch housing.

1. Restore electrical power to the outlet box by turning the electricity on at the service panel.

2. To set the desired fan speed, press the HI, MED, or LOW buttons to operate your fan on high, medium, or low speed (Figure 20).

3. To turn your fan off, press the OFF button.

4. To set the level of light brightness,

press and hold the light button. The light brightness will continue to increase then decrease while the button is held down. When the light is at the desired brightness, release the button.

5. To turn the light on and off, press and release the button. The light will turn on at the light level previously set (see step 4).

6. If airflow is desired in the opposite direction, turn the fan off and wait for the blades to stop turning. Then slide the reversing switch (Figure 21) and turn the fan on again. The blades will turn in the opposite direction and reverse the airflow.

STORAGE

BRACKET

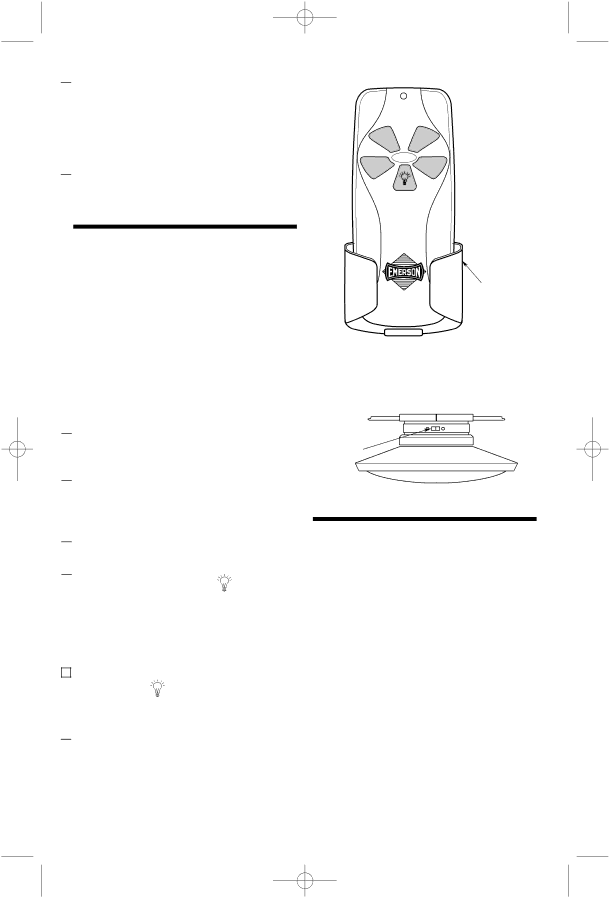

Figure 20

REVERSING

SWITCH

Figure 21

Installation of

Storage Bracket

A storage bracket is supplied with the remote control for holding the transmitter when not in use. If you desire to use the bracket, use the two screws (supplied) and install it on a wall that is away from excess heat or humidity.
