Dispensing
1.Start pump. Fluid flow rate is controlled at pump. Adjust pump pressure to obtain desired flow rate. Use lowest pressure necessary to dispense fluid.
The pressure adjustment depends on hose length, fluid viscosity, and nozzle size.
2.Disengage gun trigger lock.
Trigger Lock
Disengaged
TI8050

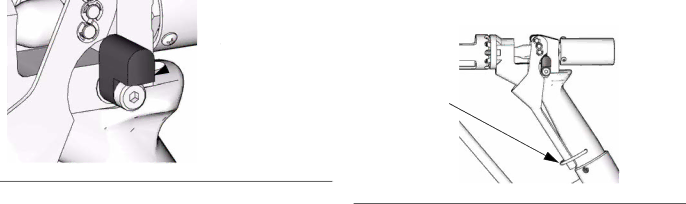

FIG. 10: Trigger Lock Disengaged
3.Squeeze trigger in all the way. Fluid flow begins with the slightest pressure on trigger and stops when trigger is released.
Operation
Shutdown
1.Turn off all heat at controller.
2.Shut off fluid supply pump.
3.Trigger gun to relieve pressure while system is still hot.
4.With gun over a waste container, hold trigger open by securing with trigger retainer (Z).
Z
TI8051b
TI8051
FIG. 11: Trigger Retainer Locked
