HP 1920, 1930, 1925, 1915 manual Illustrated Parts Catalog, System Unit

Page 11

Maintenance & Service Guide

Presario 1900 Series

Models: 1900T, 1905, 1906, 1910, 1915, 1919, 1920,

1922, 1925, 1926, 1927, 1928, 1929, and 1930

Before You Begin



Specifications



Parts Catalog





















Removal Sequence



Troubleshooting



Battery Operations





















Product Description



Pin Assignments



Index











Illustrated Parts Catalog

System Unit

Boards

Display Assembly

Mass Storage

Devices

Miscellaneous

Hardware and

Plastics Kit

Miscellaneous

Hardware and

Plastics Wedge Kit

Miscellaneous

Parts

Documentation

and Software

Configure to

Order

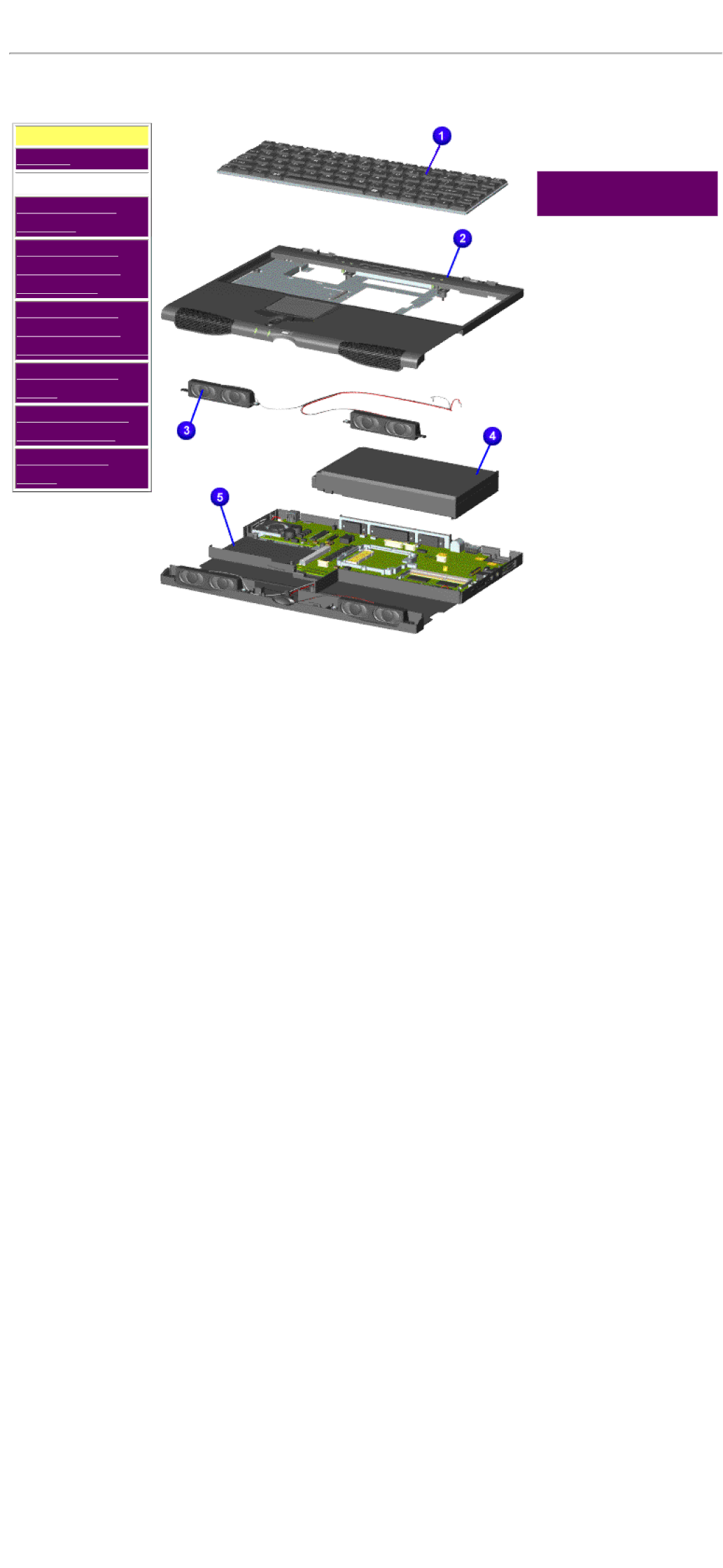

System Unit

Description

1. Keyboards

331419-

001

U.S. (or) 140676- 001 (or) 159404- 001 331419- 002

International (or)140676- 002 (or) 159404- 002 331419-

United 031

Kingdom (or) 159404- 031

Asia Pacific 331419- AA1

People's 331419- Republic of 371 China

331419-

051

France (or) 140676- 051 (or) 159404- 051

Latin America 331419161 - 331419-

Japan 291 (or) 159404- 291 140676- 061

Italy (or) 159404- 061

2.Upper CPU Cover w/Palmrest and TouchPad Spare Part No: 331423- 001 or 140678-001 or 159400-001

3.Speaker Assembly w/Cable Spare Part No: 331420-001

4.Battery Pack - Li ion Spare Part No: 386500-001 or 140664-001

5.CPU Base Assembly

Enclosure with System Board and Speaker Assembly, (Bottom Plastics)

Spare Part No: 331414- 001 or 140671-001 or 159398-001 (model 1930)

6.CPU Base Assembly Enclosure with Shield, (Bottom Plastics - Not Shown)

Spare Part No: 331421- 001 or 140679-001
