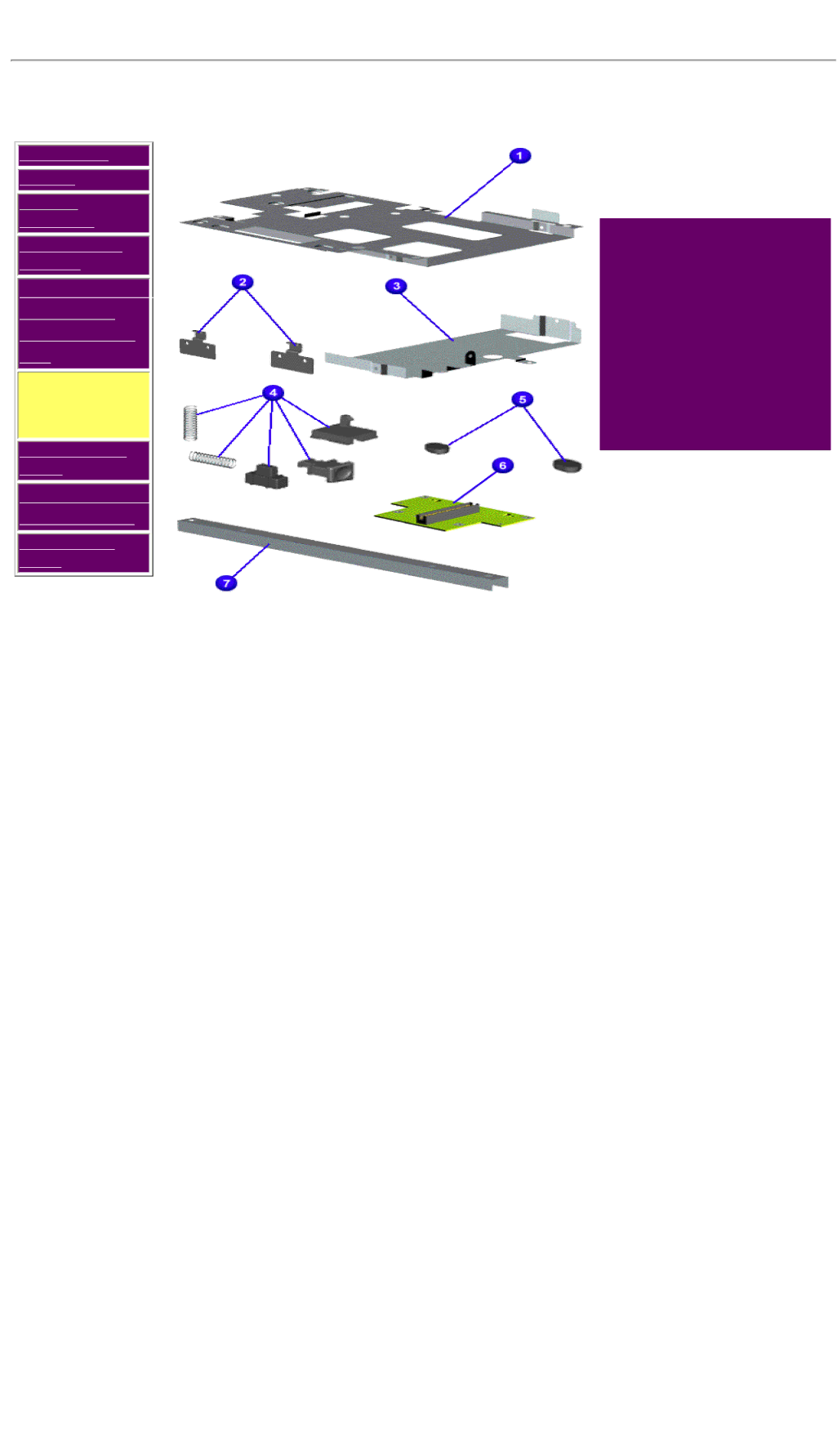

Miscellaneous Hardware and Plastics Wedge Kit

Spare Part Numbers: 331424-001 (Models: 1905, 1906, 1910, 1915, 1919, & 1920)

Spare Part Numbers: 140680-001 (Models: 1900T, 1922, 1925, 1926, 1927, 1928, 1929, 1930)

Description	Quantity
1. Diskette	1 each
Drive Shield
2. Alignment	2 each
Pins (Left and
Right)
3. DVD Drive	1 each
Shield
4. Eject	2 each
Mechanism
Assembly
w/Springs
(Left and
Right)
5. Rubber	4 each
Feet
6. Wedge to	1 each
Port
Replicator
Interface
Board
7.	1 each
Reinforcement
Bracket
Top and	331425-
Bottom	001
Wedge Cover
(Not Shown)
System to	1 each
Wedge
Interface
Board
Eject Plunger	2 each
Knobs (Not
Shown)
Plunger	2 each
Spring Coil
(Not Shown)
