Removing the Processor
To remove the processor, complete the following steps:
1.Prepare the computer for disassembly.
2.Release and lift the keyboard.
3.Remove the heatspreader with thermal pad.

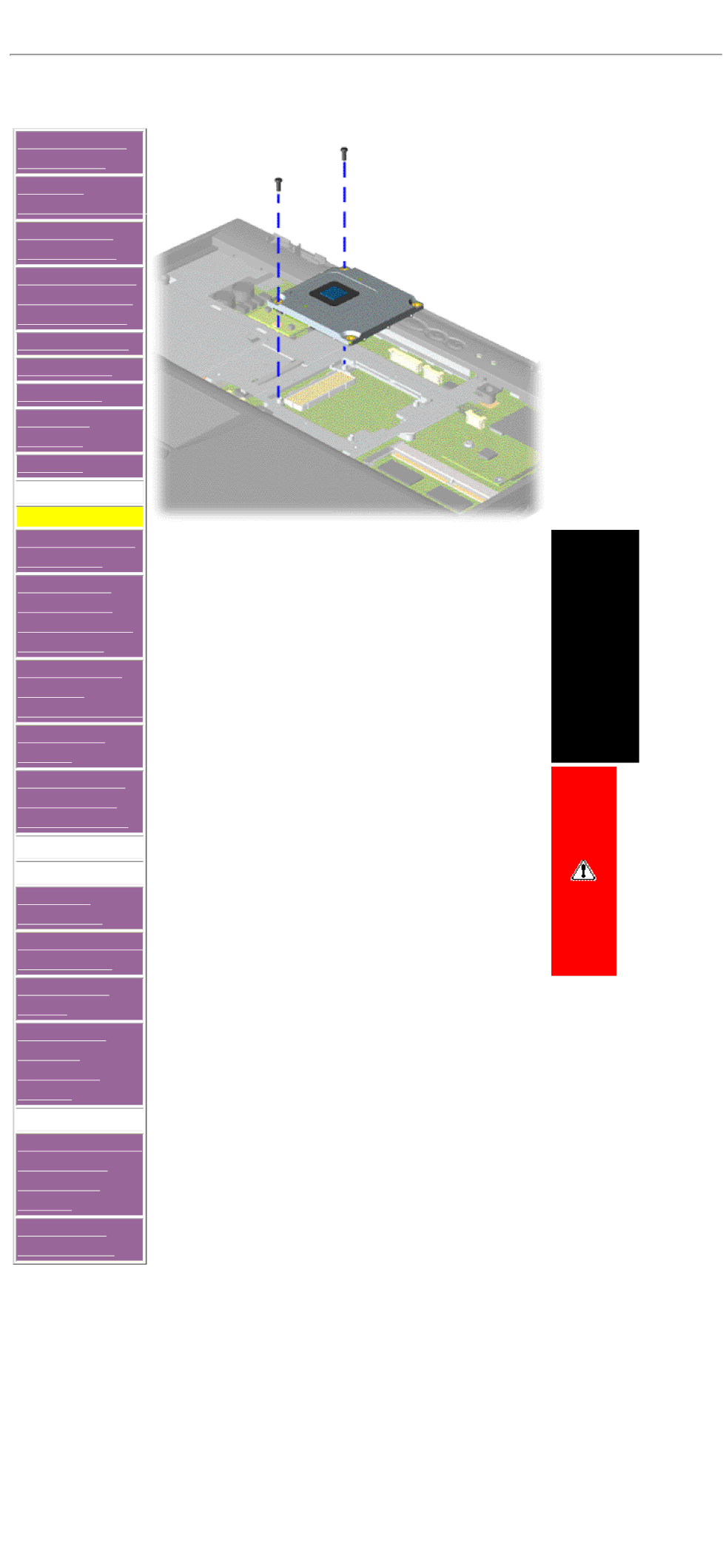

4.Remove two
screws that secure the processor to the system board.
The bottom of the processor contains socket
IMPORTANT: pins
which can be easily damaged, if not properly removed.
WARNING:
The Pentium
IIprocessor may be very hot when the unit has been running. Allow the processor to cool before handling it.
5.Insert a small blade screw driver under the right side of the processor. Gently lift up the left side of the processor while rocking up and down the right side, until the it releases from the socket. This is necessary to prevent damage to the socket pins.
To replace the processor complete the following steps:
1.Align the processor over the socket using the screw holes as a guide. Apply equal pressure on both sides of the processor over the socket (left side).
2.Replace two screws.
3.Replace the heatspreader with thermal pad.
