Page 41

DIGITAL VIDEO RECORDER

	GB		GB
	1		2

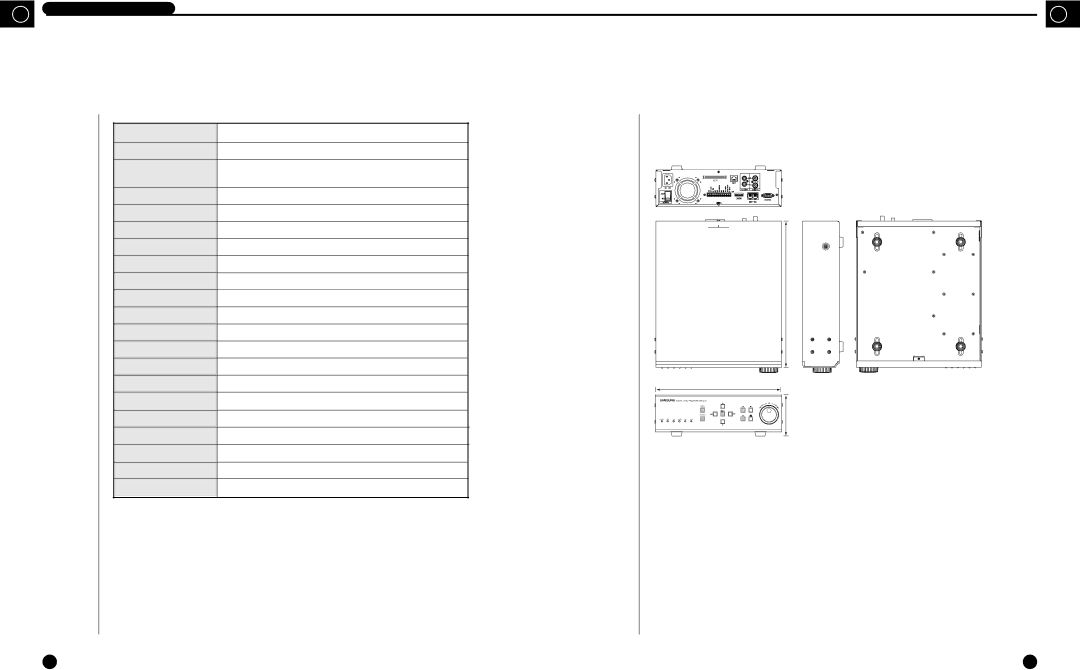

	Product Standards		Appearance Drawing
	Rated Voltage	AC 110 ~ 240V, 50/60 Hz
	Power Consumption	26W
	HDD	80 GB Basic Installation
		(Simultaneous Installation of Max. 2 HDDs)
	BACKUP	External SCSI II Interface(SCSI HDD)
	Video Input	Composite Video, BNC Jack - 1CH (1.0 Vp-p, 75Ω )
	Video Output	Composite Video, BNC Jack - 1CH (1.0 Vp-p, 75Ω
	Audio Input	RCA Jack - 1 CH (-8 dBm, 600Ω	)
	Audio Output	RCA Jack - 1 CH (-6 dBm, 600Ω	)
	Video Compression Method	Motion JPEG	350mm
	Audio Compression Method	G.723 (6.3 Kbps, 2.835 MB/h)	350mm
	Video Resolution	720 x 240 [NTSC], 720 x 288 [PAL]
	Picture Quality	Very High/High/Normal/Low
	Recording Field Rate	60 ~ 0.50 Fields/sec [NTSC], 50 ~ 0.50 Fields/sec [PAL]
	Alarm Record Time	10, 20, 30 sec, 1, 2, 3, 4, 5 min
	Remote Control	RS232, RS485, LAN	300mm
	Operation Temperature	0 °C ~ 40 °C	95mm
	Storage Temperature	-20 °C ~ 60 °C	95mm
	Storage Temperature	-20 °C ~ 60 °C
	Operating Humidity	20% ~ 85% RH
	Storage humidity	20% ~ 95% RH
	Size	300(W) x 95(H) x 350(D) mm
	Weight Approx.	5.7 Kg

6-1

6-2
