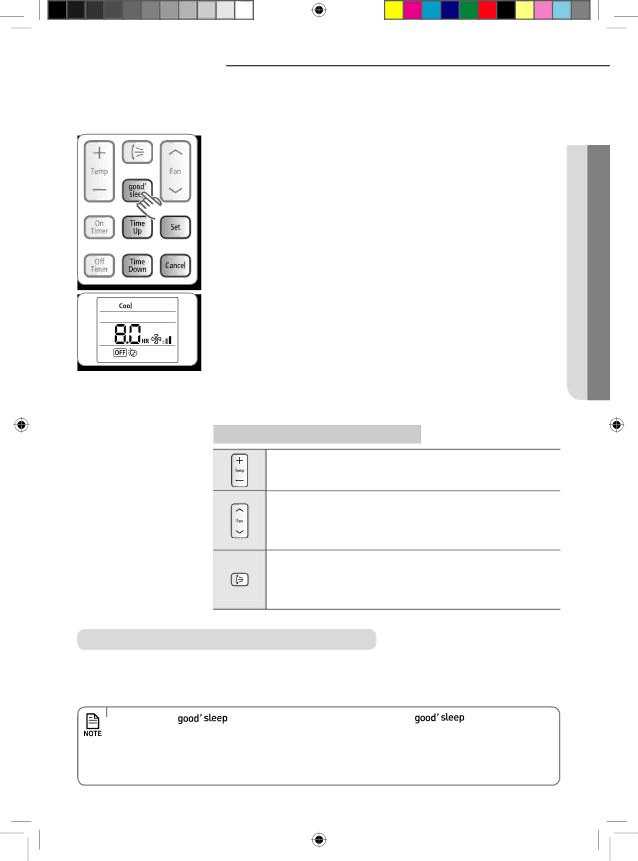

Samsung AR12FSFTKWQNET, AR09FSFTKWQNET Mode, When the air conditioner is on and in cool/heat mode

Page 17

mode

For a comfortable sleep, the air conditioner will operate it Fall asleep Sound sleep Wake up from mode.

When the air conditioner is on and in cool/heat mode

1. Press the button on the remote controller.

indicator appears and Off timer indicator starts blinking on the remote controller display.

2. Press the Time Up or Time Down button to set the time.

You can set the time in half hourly unit from 30 minutes ~ 3 hours and hour unit from 3 hours ~ 12 hours.

Operating hour can be set from minimum 30 minutes to maximum

12 hours.

Default operation hour is set to 8 hours.

3. Press the Set button to active it on.

Off timer indicator stops blinking and reserved time will be displayed for 3 seconds. Then the air conditioner operates in good’sleep mode.

If you don’t press Set button within 10 seconds after pressing the or Time Up or Time Down button, the air conditioner will return to previous status. Check Off timer indicator and indicator on the indoor unit.

Cancel Press the Cancel button once again.

You can set the desired temperature by 1˚C in the range of 16˚C~30˚C.

Fan speed will be adjusted automatically according to the mode.

However, I f you selectmode while heating operation is on, you can adjust fan speed.

Air flow direction will be adjusted automatically according to the mode.

However, if you select mode while heating operation is on, you can adjust air flow direction.

ENGLISH

Temperature and fan speed changes in mode

•Fall asleep: Eases you into sleep by dropping the temperature.

•Sound sleep: Relaxes your body and raises your temperature slightly.

•Wake up from mode: Allows you to wake up from comfortable intermittent air and it makes you feel refreshed.

• Set Off timer in

mode over 5 hours. You fell disturbed sleep if the

is set too short or long

because the default is set to 8-hour-operation.



•If the mode is set less than 4 hours, the operation will stop at the same time.

If the mode is set over 5 hours, it will run as Wake up stage from the last one hour before it stops.

•Recommended set temperature is between 25˚C~27˚C for cooling and 21˚C~23˚C for heating.

17
