Page 21

frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1.Press Enter at the first and the second screen after executing the X86Config file.

2.The third screen is for setting your mouse.

3.Set a mouse for your computer.

4.The next screen is for selecting a keyboard.

5.Set a keyboard for your computer.

6.The next screen is for setting your monitor.

7.First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)

8.Set a vertical frequency for your monitor. (You can enter the frequency directly.)

9.Enter the model name of your monitor. This information will not affect the actual execution of X-Window.

10.You have finished setting up your monitor.

Execute X-Window after setting other requested hardware.

Natural Color

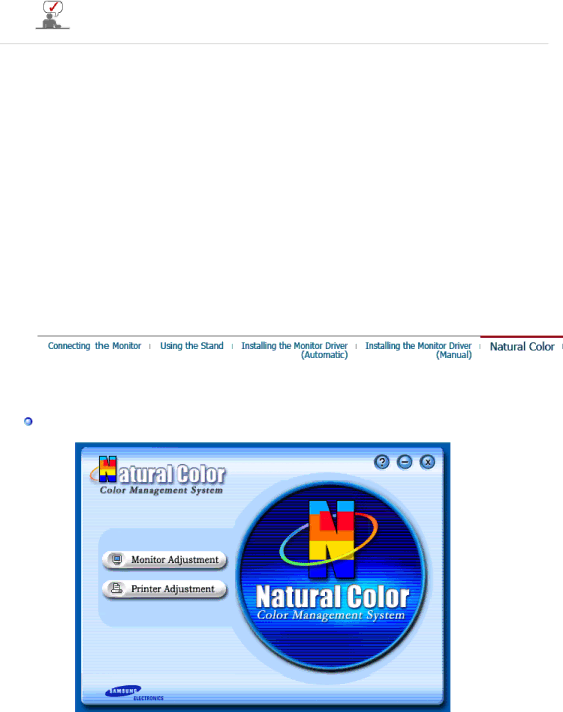

Natural Color Software Program

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor.

The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI).

This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software.

To install the program manually, insert the CD included with the Samsung monitor into the CD- ROM Drive, click the [Start] button of Windows and then select [Execute].

Enter D:\color\eng\setup.exe and then press the <Enter> key.

(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
