Quadra-Fire 4300 WOOD STOVE SERIES installation instructions Clearances to Combustibles UL and ULC

R

4300 ACT Wood Stove Series

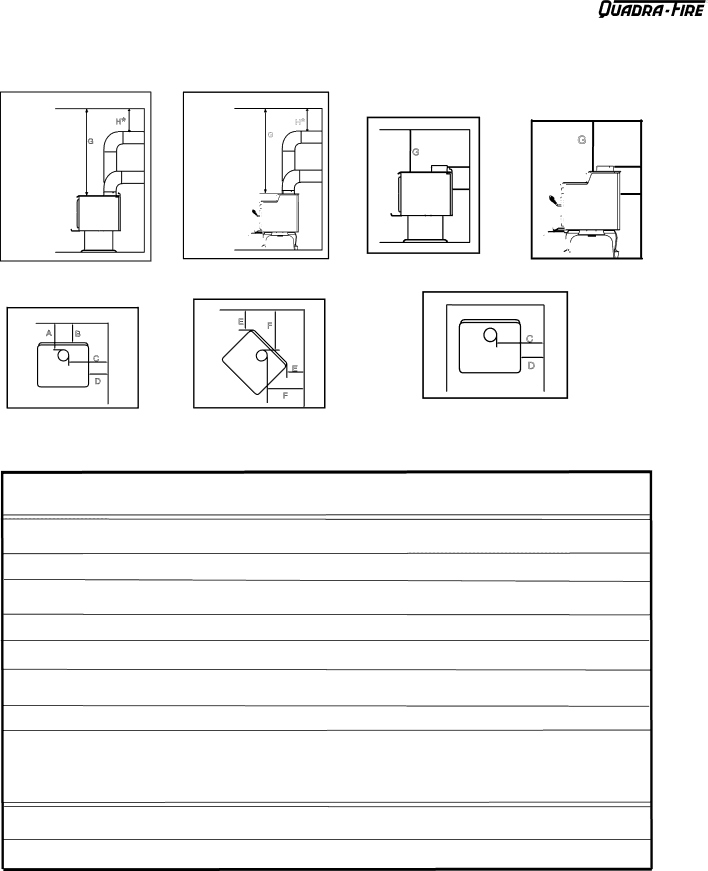

CLEARANCES TO COMBUSTIBLES (UL AND ULC)

90° OFF TOP	H*
UP & OUT CEILING	G
CLEARANCE
STOVE TO CEILING
CLEARANCE

90° OFF TOP	H*
	G
UP & OUT CEILING
CLEARANCE
STOVE TO CEILING
CLEARANCE

ALCOVE SIDE VIEW

G	A
	B

ALCOVE SIDE VIEW

G

A

B

BACKWALL / SIDEWALL

A	B
	C
	D

CORNER INSTALLATION

E	F
	E
	F

ALCOVE TOP VIEW

C

D

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS In Inches & (Millimeters) NOTE: All "A" , "C" and "F" Dimensions are to the inside diameter of the flue collar.

	A	B	C	D	E	F	G	H
INSTALLATION: Full Vertical OR Horizontal with Minimum 2 Foot Vertical Off Stove Top
SINGLE WALL PIPE	18 (457)	15.5 (394)	26 (660)	17 (432)	10 (254)	18.5 (470)	52.5 (1334)	18 (457)*
Flat Top Model
Step-Top Model	12 (305)	8.5 (216)	23 (584)	13 (330)	2 (51)	13 (330)	50.5 (1283)	18 (457)*
DOUBLE WALL PIPE	13 (330)	10.5 (267)	24.5 (622)	15 (381)	10 (254)	18.5 (470)	52.5 (1334)	10 (254)
Flat Top Model
Step-Top Model	10 (254)	6.5 (165)	23 (584)	13 (330)	2 (51)	13 (330)	50.5 (1283)	5 (127)
INSTALLATION: 90° Elbow Off Top of Stove Through Backwall
DOUBLE WALL PIPE	8.5 (216)	6 (152)	24.5 (622)	15 (381)	10 (254)	18.5 (470)	52.5 (1334)	18 (457)*
Flat Top Model
Step-Top Model	7.5 (191)	4 (102)	19 (229)	9 (229)	2 (51)	13 (330)	50.5 (1283)	18 (457)*

INSTALLATION: ALCOVE Six inch (6") (152mm) diameter listed Double Wall air insulated connector pipe with UL 103 HT listed factory-built Class "A" chimney, or a masonry chimney. (Mobile Home must be equipped with a spark arrestor). Maximum depth of Alcove shall be no more than 48"(1220mm). Please refer to the clearances below for minimum Alcove height requirements to top of unit.

DOUBLE WALL PIPE

Flat Top Model	13 (330)	10.5 (267)	24.5 (622)	15 (381)	N/A	N/A	52.5 (1334)	N/A
Step-Top Model	10 (254)	6.5 (165)	23 (584)	13 (330)	N/A	N/A	37 (940)	N/A

250-7061C December 10, 2004 Page 7
