KitchenAid TOP-MOUNT REFRIGERATOR manual Standard Door, Contour Door, Replace Doors and Hinges

Page 7

Standard Door

Graphics are included later in this section.

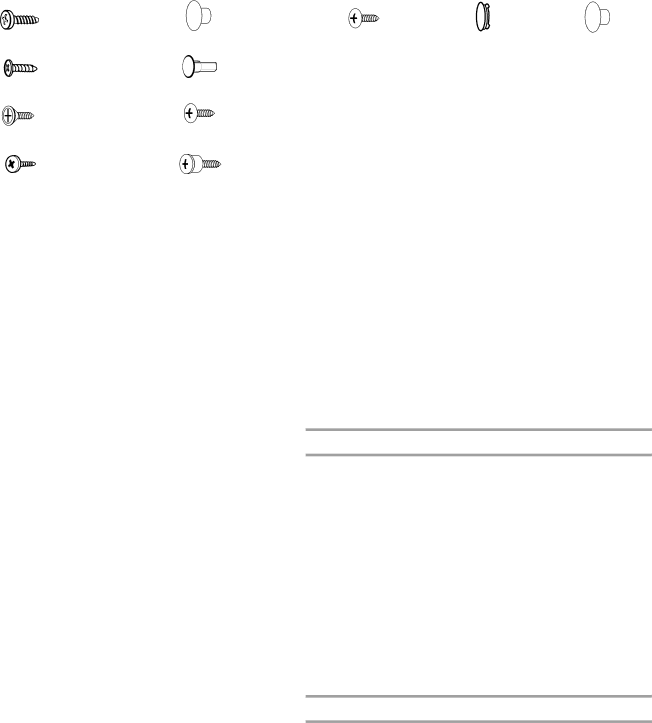

Door Stop Screw

Door Hinge Hole Plug

Door Handle Sealing Screw

Cabinet Hinge Hole Plug

Flat-Head Handle Screw

Round-Head Handle Screw

Door Handle Seal Screw Front

Shoulder Handle Screw

Cabinet

1.Remove ⁵⁄₁₆" hex-head hinge screws from handle side and move them to opposite side. See Graphic 1-1.

2.Remove cabinet hinge hole plugs from cabinet top and move them to opposite side hinge holes as shown. See

Graphic 1-2.

Freezer door

1.Remove freezer handle assembly as shown. Keep all parts together. See Graphic 2.

2.Remove door hinge hole plug. Move to opposite side as shown. See Graphic 3.

3.Remove door handle sealing screws. Move to opposite side of freezer door as shown. See Graphic 4.

4.Remove door stop. Move to opposite side of freezer door as shown. See Graphic 5.

5.Position handle on opposite side of freezer door. Assemble handles on door as shown. See Graphic 2.

6.Tighten all screws. Set aside door until hinges and refrigerator compartment door are in place.

Refrigerator door

1.Remove refrigerator handle assembly as shown. Keep all parts together. See Graphic 6-1.

2.Remove shoulder handle screw from refrigerator door as shown. Keep all parts together. See Graphic 6-2.

3.Remove door hinge hole plug from refrigerator door. Move to opposite side hinge hole as shown. See Graphic 3.

4.Remove door handle sealing screws. Move to opposite side of refrigerator door as shown. See Graphic 4.

5.Remove door handle seal screw front. Move to opposite side of refrigerator door as shown. See Graphic 7.

6.Position shoulder handle screw on opposite side of refrigerator door and drive screw as shown. See Graphic 6-2.

7.Remove door stop. Move to opposite side of refrigerator door as shown. See Graphic 5.

8.Position refrigerator handle on opposite side of the refrigerator door as shown in Graphic 6-3. Drive the top two screws in handle first. Align the lower portion of handle and drive bottom screw.

9.Tighten all screws. Set aside the refrigerator door until the bottom hinge is installed on the product.

Contour Door

Graphics are included later in this section.

Round-Head

Door Handle

Door Hinge

Handle Screw

Screw Hole Plug

Hole Plug

Cabinet

1.Remove ⁵⁄₁₆" hex-head hinge screws from handle side and move them to opposite side. See Graphic 1-1.

2.Remove cabinet hinge hole plugs from the cabinet top and move them to opposite side hinge holes as shown in Graphic 1-2.

Doors

1.Remove door hinge hole plug from top of freezer door. Move to opposite side as shown in Graphic 2.

2.Remove door stop from both the freezer and refrigerator door. See Graphic 3.

NOTE: When reversing the door, the freezer handle becomes the refrigerator door handle and the refrigerator door handle becomes the freezer handle. See Door Handle Reversal graphic.

3.Remove freezer handle assembly as shown. Keep all parts together. See Graphic 4.

4.Remove refrigerator handle assembly as shown. Keep all parts together. See Graphic 5.

5.Rotate and position handle from refrigerator door onto freezer door and assemble as shown in Graphic 6.

6.Rotate and position handle from freezer door onto refrigerator door and assemble as shown in Graphic 7.

7.Reinstall door stops to opposite side. See Graphic 8.

Replace Doors and Hinges

NOTE: Graphic may be reversed if door swing is reversed.

1.Replace the parts for the bottom hinge as shown and tighten screws. See Bottom Hinge graphic. Replace the refrigerator door.

NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

2.Assemble the parts for the center hinge as shown and tighten all screws. See Center Hinge graphic. Replace the freezer door.

3.Assemble the parts for the top hinge as shown in Top Hinge graphic. Do not tighten screws completely.

4.Line up the doors so that the bottom of the freezer door aligns evenly with the top of the refrigerator door. Tighten all screws.

Final Steps

1.Check all holes to make sure that hole plugs and screws are in place. Reinstall top hinge cover. See Top Hinge graphic.

NOTE: On the left-hand side of the base grille there is a removable tab which is a bottom hinge hole plug. Break off the tab from the base grille and insert the bottom hinge hole plug into the bottom hinge holes. See Base Grille graphic.

2.Replace the base grille. See Base Grille graphic.

3.Plug in refrigerator or reconnect power.

4.Reset the controls. See “Using the Controls.”

5.Return all removable door parts to the doors and food to the product.
