GE ZV421, ZV541 Parts Provided, Hardware Package, Accessory Package, Attachment Screws

Page 9

Installation Preparation

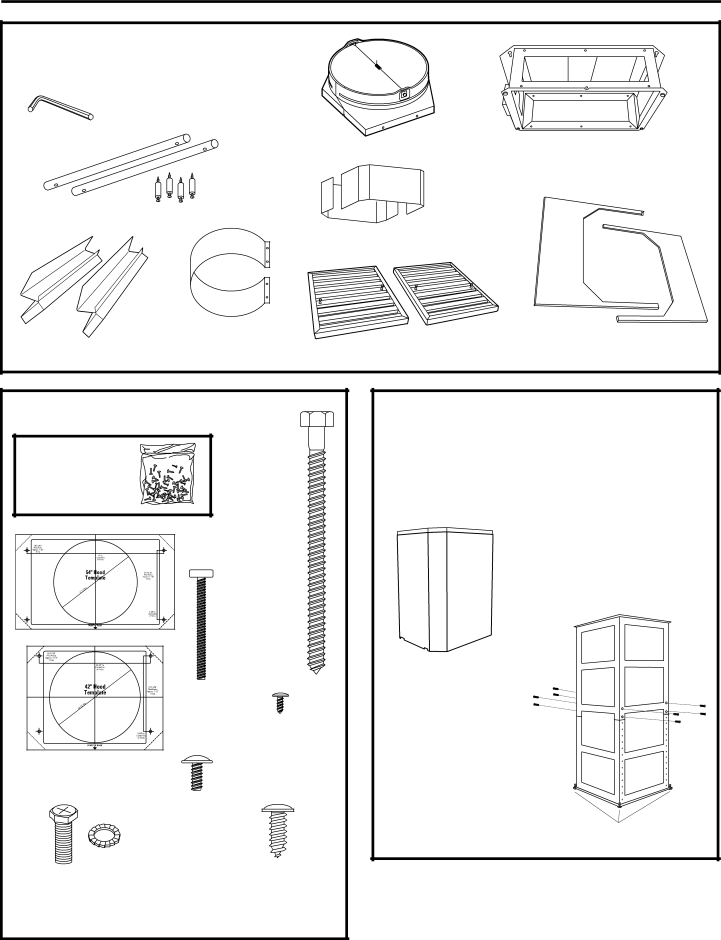

PARTS PROVIDED

Locate the parts packed with the hood.

Allen Wrench

Transition with Damper

Implement rods with standoffs

2-piece decorative duct cover



Duct collar

2 Grease trays (3 with 54" hood)

2 Filters (3 with 54" hood)

Support frame for 8 ft. ceiling with 4 large pan head screws installed on the bottom corners.

Decorative top cover

HARDWARE PACKAGE

Locate and check contents. Screws shown actual size.

Screws A 4 (7/16") hex head wood screws

Screws B

2 (1/8" x 1-1/2") Phillips

pan head screws.



Screws D



2 small



Phillips

2 Templates

head



screws

Screws C 8 blunt point Phillips screws

ACCESSORY PACKAGE

Check accessory package.

Select the taller set for 9’6" to 10’4" ceilings. Select the shorter set for 8’6" to 9’6" ceilings. Discard unused set.

2 Sets of Duct Covers

2 Support Frames with 8 height adjustment screws

4 Attachment Screws

Screw F

Screws E

2 Phillips

Blower safety screw and lock washer,

Phillips head M 6 x 16.

head wood screws

Note: Hardware appearance may vary slightly.

9
