LG Electronics GR-P227/L227, GR-P257/L257 Micom Function, Monitor Panel, Display Second Function

Page 18

MICOM FUNCTION

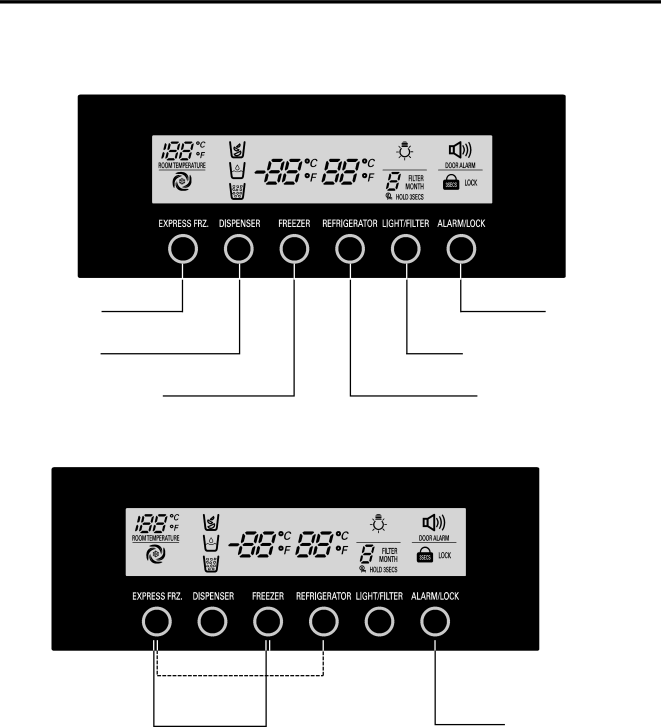

1. Monitor Panel

1-1.GR-P227/GR-P257

Expres Freezer

Selection Button

Dispenser

Selection Button

Temperature Adjust Button For Freezer Compartment

Door Alarm Button/

Lock Button

Dispenser Light On/Off Button/ Filter Status Display RESET Button

Temperature Adjust Button For Refrigerator Compartment

1-2. Display Second Function

Demo Mode

Display Power

Saving Mode

1.Door Alarm Buzzer Mute Mode

Press ALARM/LOCK to turn the buzzer on or off.

2.Display Power saving Mode

Buzzer Mute Mode

It places display in standby mode until door is opened.

Press FREEZER and EXPRESS FRZ. buttons simultaneously to turn all LEDs ON and then OFF with the recognition sound of Ding~ after 5 seconds. (Be sure not to press only one button to work.)

- 16 -
