LG Electronics GR-P227/L227, GR-P257/L257 service manual Miracle Zone Stepping Motor / Display

Page 42

EXPLATION FOR MICOM CIRCUIT

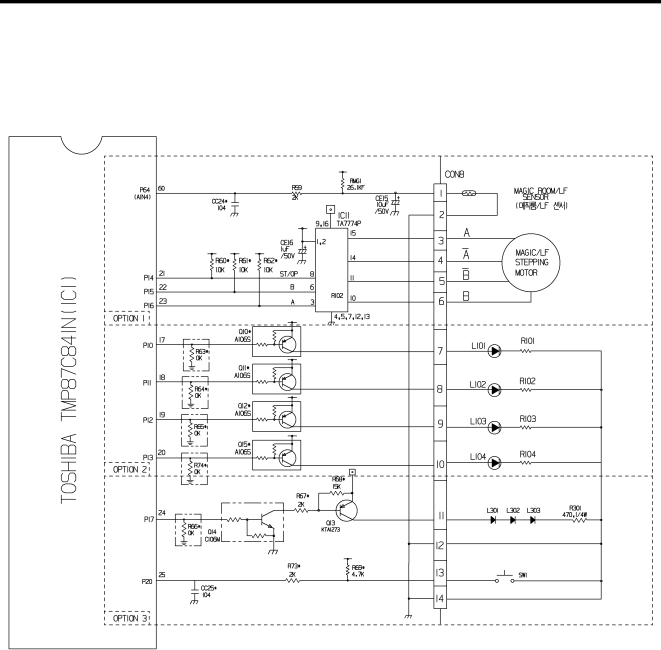

1-14. Miracle Zone STEPPING MOTOR / Display

Miracle zone stepping motor damper is same as 1-8 stepping motor operation circuit and the miracle zone display turns on only when the R-door opens.
