Plumbing Connections

WATER CONNECTION -- CNV14E ONLY

NOTE: Hot water maximizes steam production but is not required. Cold water may be supplied to both inlets if hot water is not available.

Connect the appliance to quality water via a pres- sure hose with 3/4” (19mm) couplings. See Figure 6 for connections. A shut off valve is to be provided adjacent to the oven.

WARNING!!

Operating the appliance without the water regulator installed will invalidate your war- ranty.

Water must meet the following minimum require- ments:

DTotal Dissolved Solids (TDS) content will not ex- ceed 30 parts per million.

DWater PH must be 7.0 or higher

WARNING!!

The use of poor quality water will invali- date your warranty.

CNV-14E

Cold

Water

Water Connections

Rear of Appliance

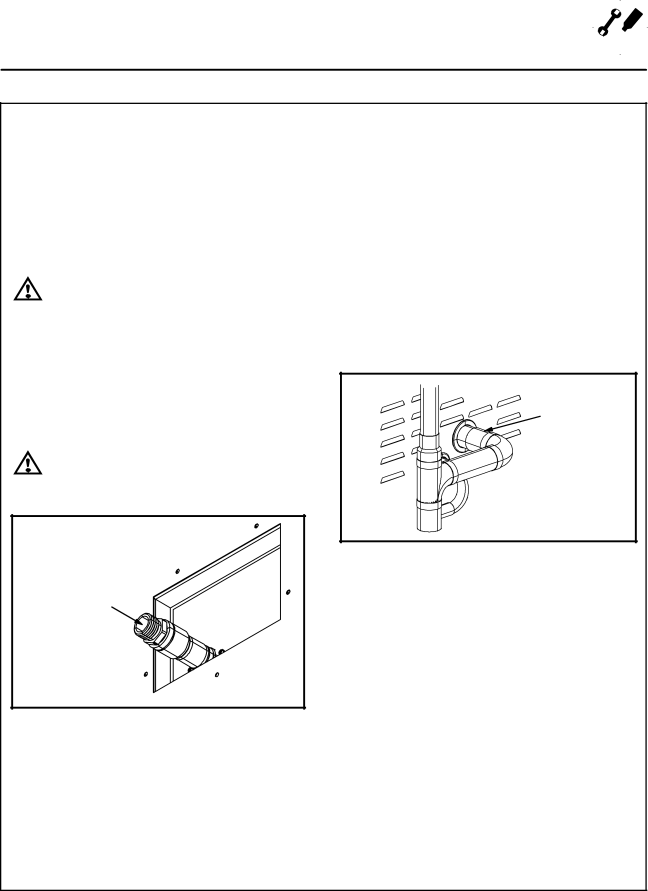

Figure 6

DRAIN CONNECTION

The steam vent assemblies are constructed of 2” DWV copper piping reduced to 1-1/2 DWV pipe. If the vent system is not purchased as an option (R9381), Blodgett Combi recommends plumbing the oven as shown in Figure 7.

The steam vent should be run to an open floor drain avoiding flexible hose that could sag and al- low trapped water to accumulate. The customer must supply the piping from the oven to the drain.

Connect the drip pan drain to the steam vent with 1.125 I.D. hose.

Use the drain vent assembly and a 2” (50.8mm) pipe for drain connection.

Coupling

Customer supplied 2” (50.8mm) drain waste vent piping

Figure 7

Specific water/drain connection for City of Los Angeles

1.Each drain line from the appliance shall be routed without dips or sags to terminate above the flood level rim of an approved indi- rect waste receptor.

2.The appliance shall be installed in accordance with the manufacturer’s printed instructions and the LAPC and LAMC, 1999 editions.

3.A backflow protection device shall be installed on the potable water system directly ahead of the appliance. The backflow protection device shall be any of the following: an approved pres- sure type vacuum breaker installed at least 12” above the highest point of use, a double check valve backflow preventer or a reduced pressure principal backflow preventer.
