Bakers Pride Oven service manual Control Panel ALF-FC Parts

Page 40

Automatic Lift Fryer

Replacement Parts

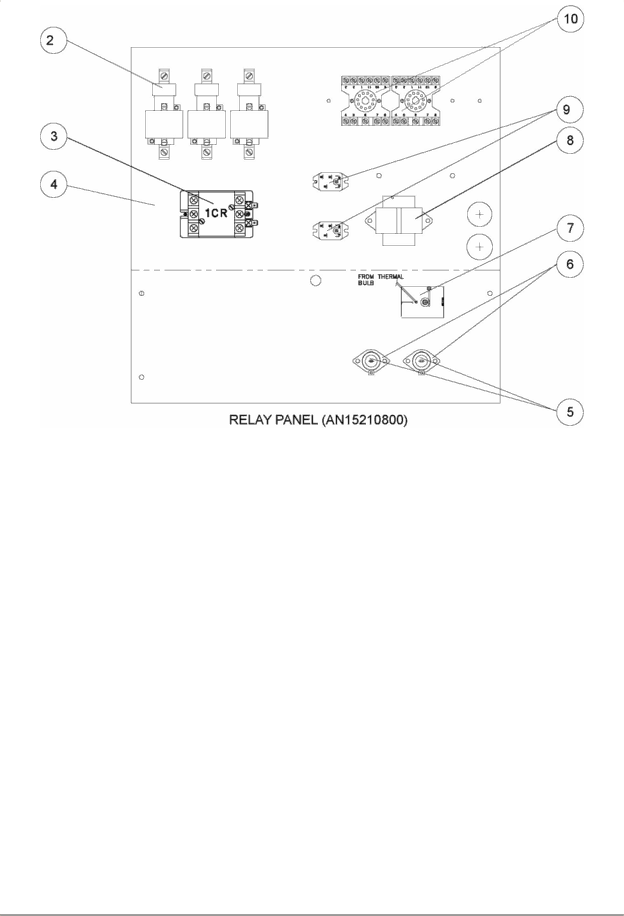

Table 7. Control Panel ALF-FC Parts

ITEM #

PART #

QTY

DESCRIPTION

1

CP0039

1

CONTROLLER, VFD LESS HARNESS

2

R0134

4

RELAY, MERCURY MDI 60NO220A (AN15210900)



R0134

3

RELAY, MERCURY MDI 60NO220A (AN15210800)

3

R0150

1

RELAY, 4 POLE 208-240 60 HZ (AN15210900)



R0148

1

RELAY, 3 POLE 42CF35AG (AN15210800)

4

SB1277

1

CTL PNL WELD ALF-FC

5

F0097

2

FUSE, 15A 300V SC15 TIME DELAY

6

FH0001

2

FUSE HOLDER, 15A 300V HPF-EE

7

T0036

1

THERMOSTAT, HI LIMIT 540 DEG

8

W0054

1

TRANSFORMER ASSY 240V

9

R0044

2

RELAY, X-40, SGL FRYER

10

R0131

2

RELAY. PLUG IN 3PDT 240V COIL

11

S0104

1

SWITCH, RKR DPDT 15A 250V LAMP

12

S0127

1

SWITCH, ROCKER 2P, 3 POS

13

LPFA172

1

RELAY SUPPORT PANEL ALF LPF48

14

N0407

1

DECAL, CONTROL PANEL ALFFC LOG

38
