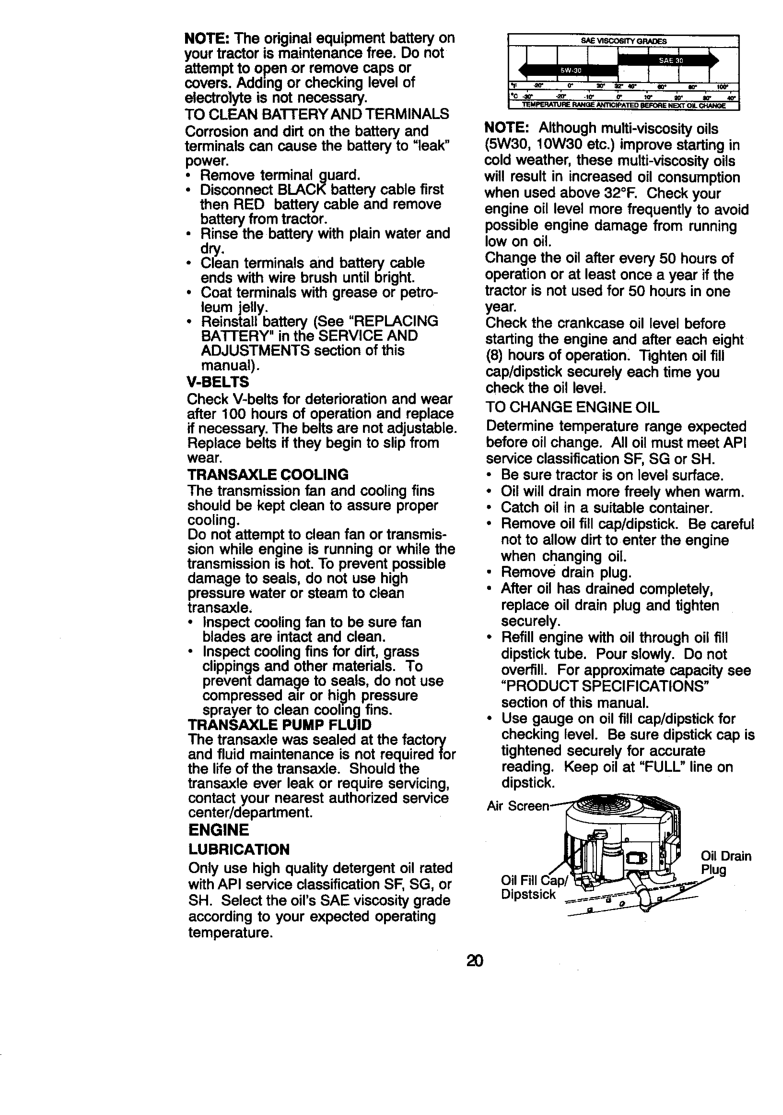

Craftsman 917.27086 manual Engine, To Clean Batieryand Terminals, Belts, Transaxle Cooling

Page 20

NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary,

TO CLEAN BATI'ERYAND TERMINALS

Corrosion and dirt on the battery and terminals can cause the battery to "leak" power,

Remove terminal guard.

Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor.

•Rinse the battery with plain water and dry.

•Clean terminals and battery cable ends with wire brush until bright.

•Coat terminals with grease or petro- leum jelly.

•Reinstall battery (See "REPLACING BATTERY" in the SERVICE AND ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear,

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean to assure proper cooling.

Do not attempt to clean fan or transmis- sion while engine is running or while the transmission is hot. To prevent possible

damage to seals, do not use high pressure water or steam to clean transaxle,

•Inspect cooling fan to be sure fan blades are intact and clean.

•Inspect cooling fins for dirt, grass clippings and other materials. To

prevent damage to seals, do not use

compressed a=ror high pressure sprayer to clean coohng fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid maintenance is not required for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact your nearest authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classification SF, SG, or SH. Select the oil'sSAE viscosity grade according to your expected operating temperature.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and after each eight

(8) hours of operation_ Tighten oil fill

cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API service classification SF, SG or SH.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

•Remove oil fill cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

•Remove drain plug.

•After oil has drained completely, replace oil drain plug and tighten securely.

•Refill engine with oil through oil fill dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this manual.

•Use gauge on oil fill cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at "FULL" line on dipstick.

Oil Drain

Oil Fill

Dipstsick

2O
