SPECIFICATIONS

Important: Lire les instructions dans leur intégralité avant de commencer l’installation.

Chaque bain arrive prêt pour l’installation, complètement équipée avec le moteur de ventilateur et la plomberie nécessaire pour l’opération. Un kit de vidange/trop-plein est inclus pour l’installation sur le bain.

Retirer la baignoire du carton. Conserver le carton d’expédition jusqu’à ce qu’une inspection satisfaisante du produit ait eu lieu.

Ne jamais relever la baignoire par la tuyauterie; manipuler uniquement par la coque.

Dès réception, inspecter la coque avant l’installation. Si l’inspection révèle un dommage ou un défaut quelconque dans le fini, ne pas installer la baignoire. Les réclamations concernant les dommages ou les défauts faites après l’installation de la baignoire sont exclues de la garantie. La responsabilité de Jacuzzi© Whirlpool Bath concernant les dommages durant l’expédition cesse à la livraison de produit en bon état au transporteur.

Faire toute réclamation en cas de dommages auprès du transporteur. Pour les définitions concernant la couverture et les limitations de la garantie, consulter les informations de garantie publiées emballées avec le produit. Toutes les baignoires sont testées en usine pour vérifier leur bon fonctionnement et l’étanchéité des connexions avant l’expédition.

Remarque: Avant l’installation, la baignoire doit être remplie avec de l’eau et actionnée pour vérifier qu’il n’y a pas de fuites résultant de dommages qui auraient pu avoir lieu durant le transport ou la manipulation. Jacuzzi© Whirlpool Bath n’est pas responsable des défauts qui auraient pu être découverts, réparés ou évités en suivant cette procédure d’inspection et de test.

FRANÇAIS

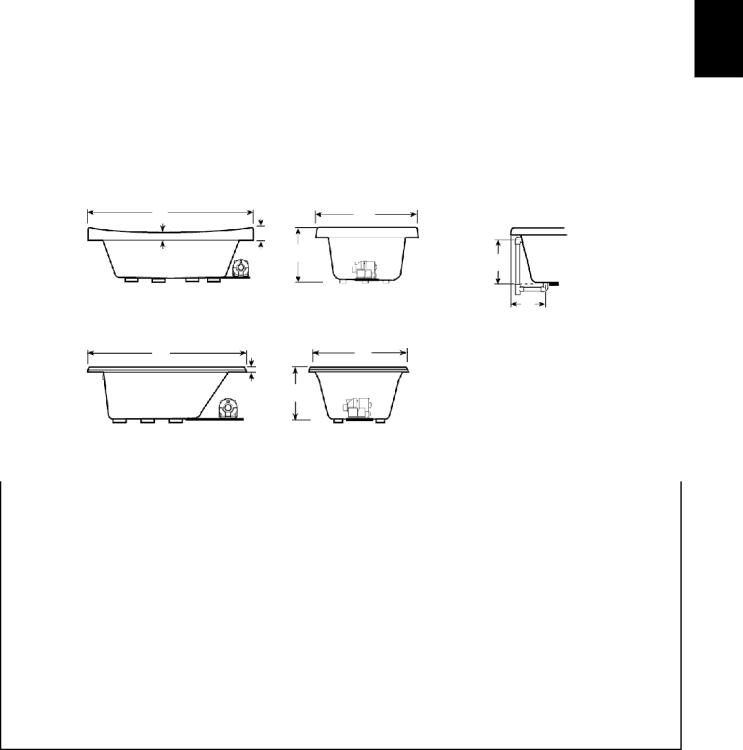

BAIGNOIRES RECTANGULAIRES



L









I













2”



102 mm

h

Ventilateur



A























(51 mm)



(4 po)



































VUE LATÉRALE





VUE D'EXTRÉMITE





B

































Allusion







Vidange/Trop-polein





L









I

















51 mm

h

Ventilateur

















(2 po)





















































VUE LATÉRALE





VUE D'EXTRÉMITE















Bellavista 5.5 and 6





































MODÈLE

DIMENSIONS



SYSTÈME DE





DÉCOUPE

POIDS TOTAL/



CONTENANCE

POIDS DU

JUPE ET







VIDANGE/TROP-PLEIN







CHARGE AU SOL



MOYENNE

PRODUIT

MONTANTS

ALLUSION 6636

1829 mm (66 po) L



441 mm (17-3/8 po) A





Gabarit fourni,

395 kg (868 lb)/



220 Lt

61 kg

Non

800W

914 mm (36 po) I



210 mm (11-15/16 po) B





PN BY20000

259 kg/m2 (53 lb/ft2)



(58 gal)

(135 lb)

disponible



660 mm (26 po) h













































Allusion 7236

1829 mm (72 po) L



441 mm (17-3/8 po) A





Gabarit fourni,

430 kg (945 lb)/



250 Lt

66 kg

Non

800W

914 mm (36 po) I



210 mm (11-15/16 po) B





PN BY20000

259 kg/m2 (53 lb/ft2)



(66 gal)

(145 lb)

disponible



660 mm (26 po) h













































Allusion 7242

1829 mm (72 po) L



441 mm (17-3/8 po) A





Gabarit fourni,

532 kg (1170 lb)/



277 to 356 Lt

70 kg

Non

800W

1067 mm (42 po) I



210 mm (11-15/16 po) B





PN BY20000

273 kg/m2 (56 lb/ft2)



(73-94 gal)

(155 lb)

disponible



660 mm (26 po) h





















BELLAVISTA 5.5

1676 mm (66 po) L



508 mm (20 po) A





Gabarit fourni,

490 kg (1078 lb)/



322 Lt

56 kg

Non

800W

1067 mm (42 po) I



298 mm (11-3/4 po) B





PN P187000

273 kg/m2 (56 lb/ft2)



(85 gal)

(120 lb)

disponible



660 mm (26 po) h





















BELLAVISTA 6

1829 mm (72 po) L



508 mm (20 po) A





Gabarit fourni,

535 kg (1180 lb)/



341 Lt

59 kg

Non

800W

1067 mm (42 po) I



298 mm (11-3/4 po) B





PN P187000

274.4 kg/m2 (56.2 lb/ft2)



(90 gal)

(130 lb)

disponible



660 mm (26 po) h













































NOTES: Les dimensions sont nominales avec une tolérance de +0 et 6,4 mm (1/4 po).

Exigences électriques: 115 VAC, 15 A, 60 Hz

Nécessitent un circuit séparé protégé par un disjoncteur de fuite à la terre dédié.

Les gallons opérants sont dans les gallons américains.

Jacuzzi© Whirlpool Bath: Installation and Operation

Page 23

BE76000F • December 2007
