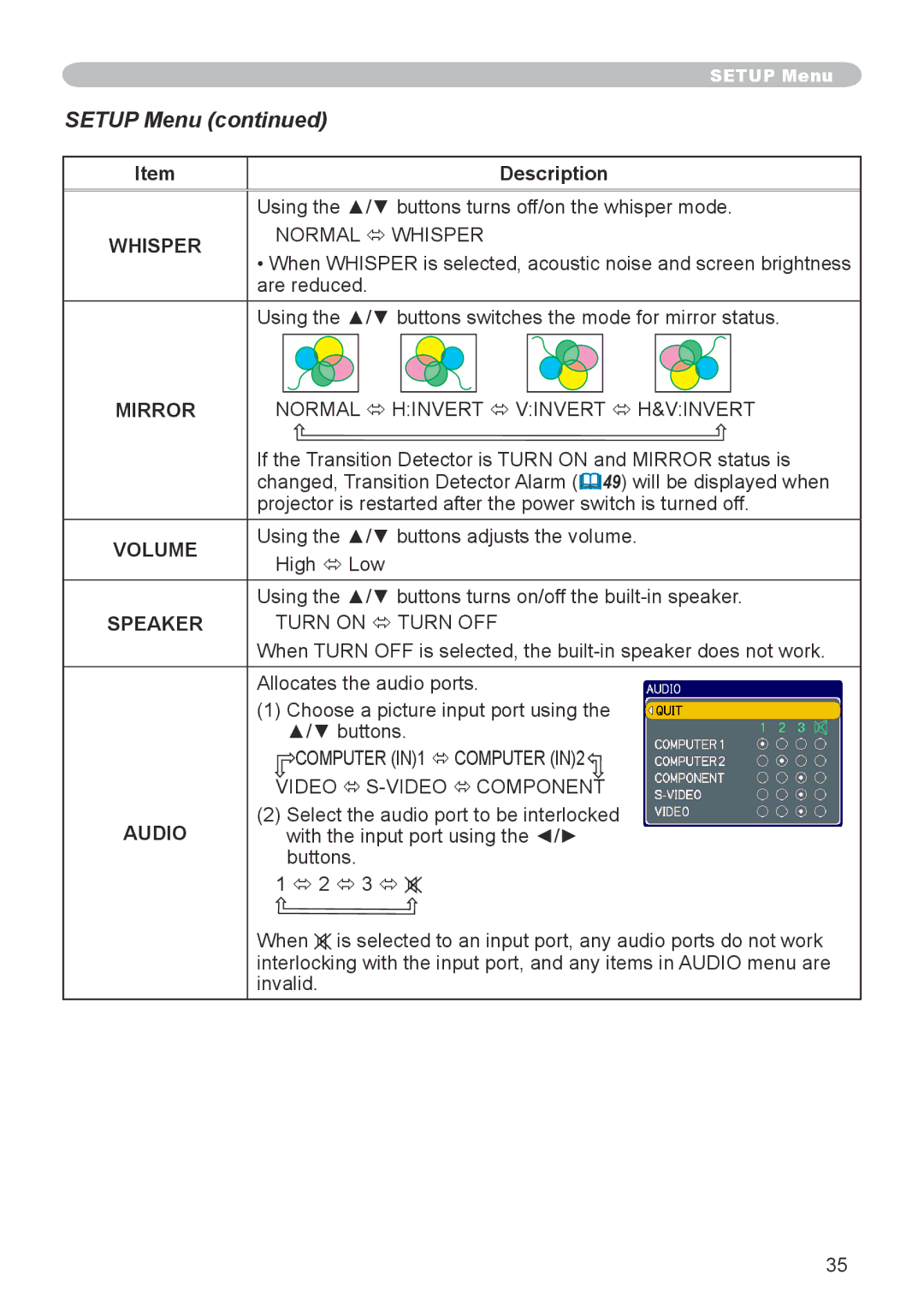

SETUP Menu

SETUP Menu (continued)

Item

Description



Using the ▲/▼ buttons turns off/on the whisper mode.

WHISPER

NORMAL ó WHISPER

• When WHISPER is selected, acoustic noise and screen brightness





are reduced.



Using the ▲/▼ buttons switches the mode for mirror status.

MIRROR

NORMAL ó H:INVERT ó V:INVERT ó H&V:INVERT



If the Transition Detector is TURN ON and MIRROR status is



changed, Transition Detector Alarm (49) will be displayed when



projector is restarted after the power switch is turned off.

VOLUME

Using the ▲/▼ buttons adjusts the volume.

High ó Low





Using the ▲/▼ buttons turns on/off the built-in speaker.

SPEAKER

TURN ON ó TURN OFF



When TURN OFF is selected, the built-in speaker does not work.

Allocates the audio ports.

(1)Choose a picture input port using the ▲/▼ buttons.

COMPUTER (IN)1 ó COMPUTER (IN)2

VIDEO ó S-VIDEO ó COMPONENT

AUDIO

(2) Select the audio port to be interlocked

with the input port using the ◄/►



buttons.



1 ó 2 ó 3 ó

When is selected to an input port, any audio ports do not work interlocking with the input port, and any items in AUDIO menu are invalid.

35
