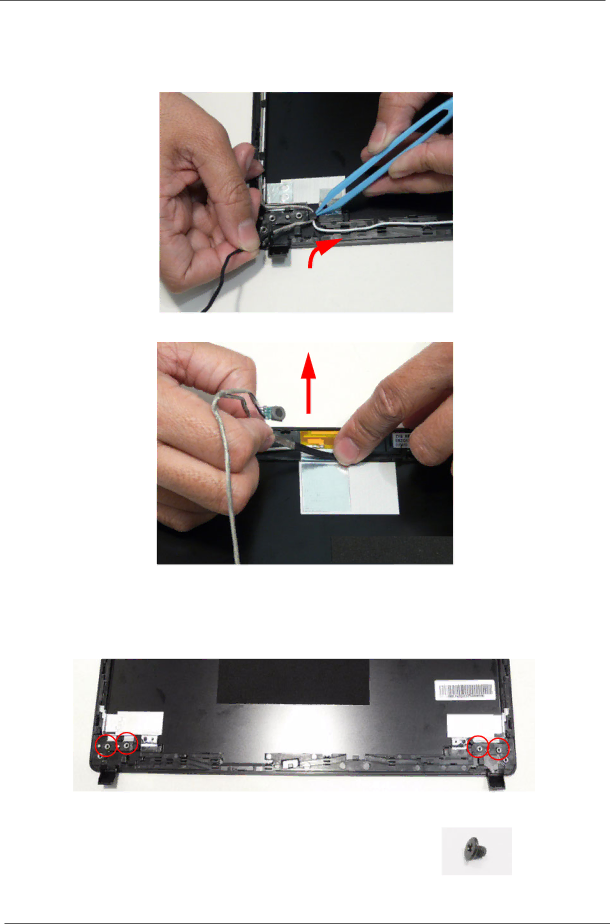

Removing the Microphone Module

1.See “Removing the LCD Panel” on page 80.

2.Disengage the cable from the cable guides.

3.Lift the Microphone Module clear of the cover.

Removing the Hinges

1.See “Removing the LCD Panel” on page 80.

2.Remove the four (4) screws from the hinges

Step



Size

Quantity

Screw Type











LCD Hinges

M2.5*3



4













3.Ensure all cables are free from the hinges and remove them from the LCD cover.
