Removing the FPC Cable

1.See “Removing the LCD Panel” on page 80.

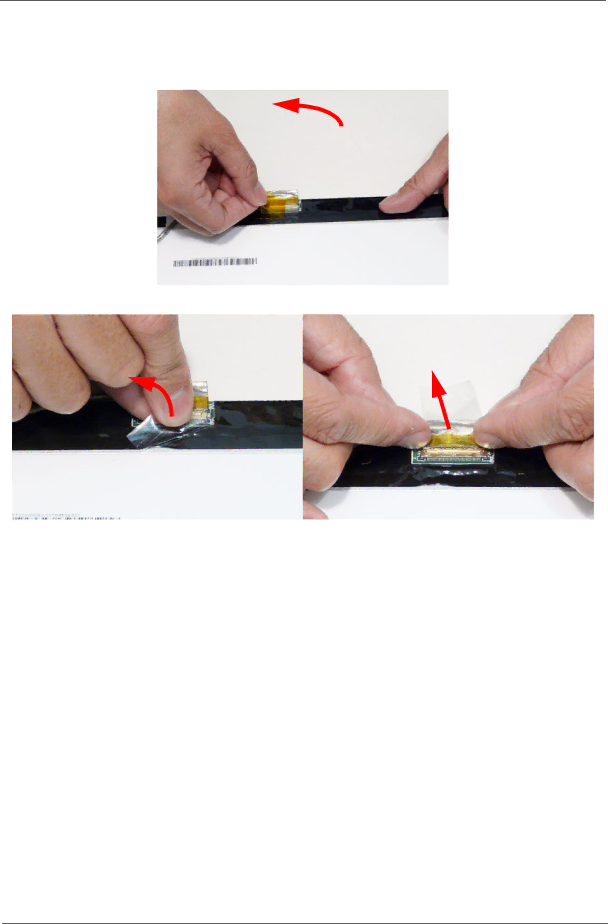

2.Turn the LCD panel over to expose the rear. Remove the adhesive strip securing it in place.

3.Lift the adhesive protector and disconnect the cable from the LCD Panel.

4.Lift the FPC cable from the panel.

Chapter 3

81
