Acer NV59C - page 97

Chapter 3 87

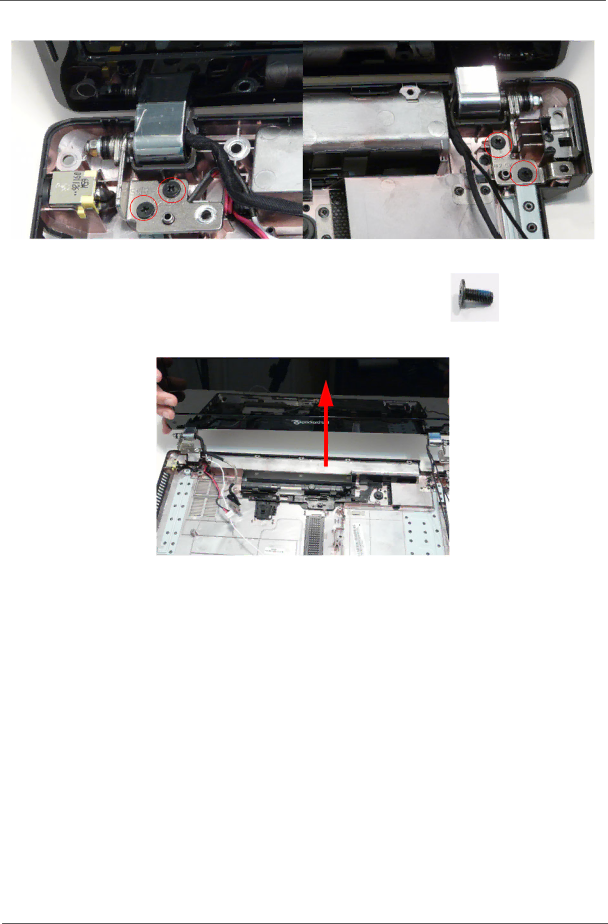

7. Remove four (4) screws from the LCD assembly.

8. Remove the LCD assembly from the lower cover.

Step Size Quantity Screw Type

LCD assembly M2.5*8 4
