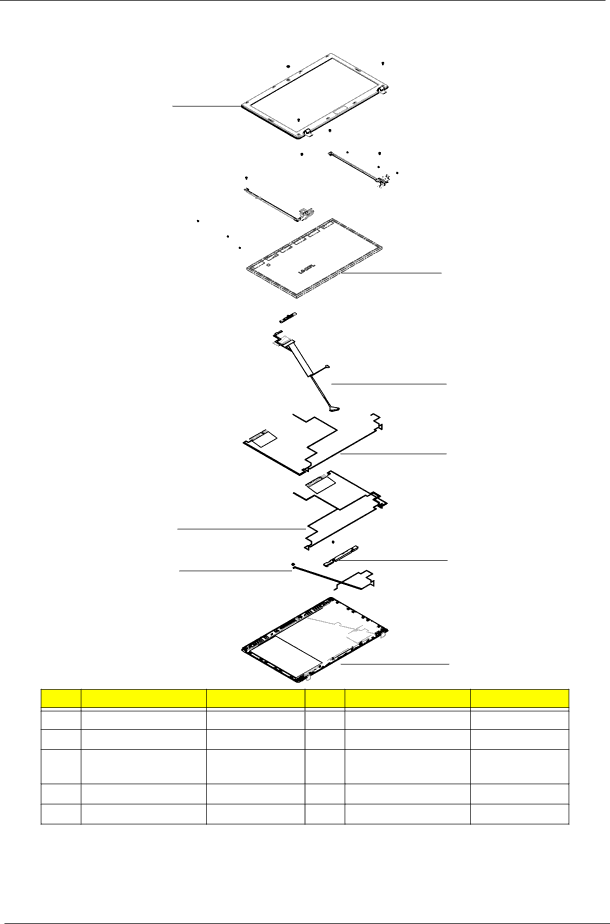

LCD Assembly
1
2
5
6
3
4
7
8
9
|
|
|
|
| 10 |
No. | Description | Acer P/N | No. | Description | Acer P/N |
1 | LCD Bezel | 60.WJ802.004 | 6 | LCD Panel | LK.15605.010 |
2 | LCD Bracket (L) | 33.WJ802.004 | 7 | LVDS Cable | 50.WJ802.006 |
3 | Antenna Cable | 50.WJ802.004 | 8 | Antenna Cable | 50.WJ802.005 |
| (Main) |
|
| (Aux) |
|
4 | Microphone Cable | 23.WJ802.001 | 9 | Camera Module | 57.WJ802.001 |
5 | LCD Bracket (R) | 33.WJ802.004 | 10 | LCD Cover | 60.BHN02.001 |
