5.1 Connecting Attaching Head to the Boom

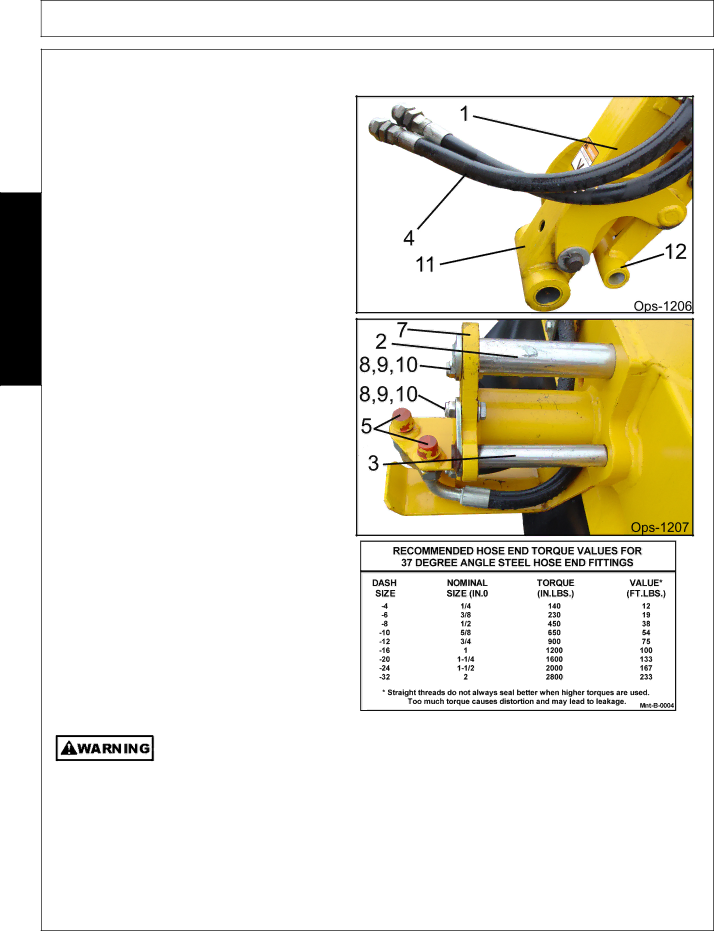

1.Start by using a hoist to lower the boom(1) down to the mower head (6). Align the Boom with the Head Hitch Post(7), insert the upper hitch pin(2) through the top hole of the Head Hitch Post (7) and upper linkage (11). Attach with bolt (8), washer(9) , and nut (10).

2.Then align the lower linkage (12) of the Boom and insert the lower hitch pin(3) through lower hole of hitch post(7).Attach with bolt (8),washer

(9) and nut(10).

3.Finally make sure all bolts, nuts, and pins are tightened to recommended torque. (Refer to

Figures Ops-1206 & Ops-1207)

5.2Connecting Mower Head Hydraulics

Attach the hoses(4), from the articulating arm to the hydraulic motor ports (5) on the head. Use recommended hose end torque values in chart below. (Refer to Figures Ops-1206,Ops-1207 & Mnt-B-0004)

Use extreme caution when connecting the mower to the tractor. The mower should be securely resting at ground level or on blocks. Place a block in front of and behind the tires to prevent the mower from moving. Keep hands and feet out from under the mower and clear of pinch points between the tractor and mower.

Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and hose connections. Relieve hydraulic pressure before performing maintenance or repairs. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.
