Asus P5KC - page 115

華碩 P5KC 主機板使用手冊

5-5

5.2.4 製作磁片選單

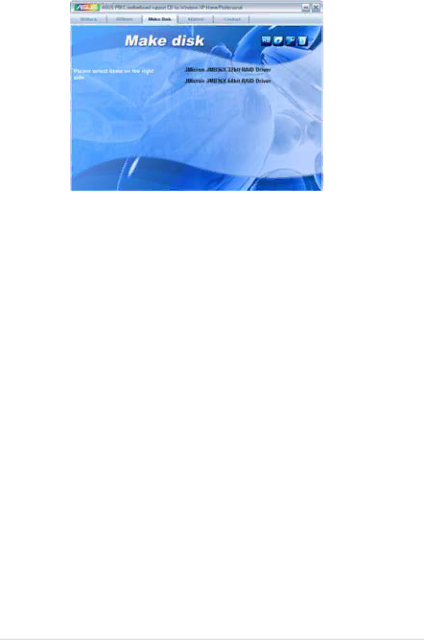

本選單包含製作 JMicron® JMB36X RAID 驅動程式磁碟片。

製作 JMicron JMB36X 32bit RAID 驅動程式磁片

製作 JMicron JMB36X 64bit RAID 驅動程式磁片

本項目可以讓您建立一張包含有 JMicron JMB36x 32/64bit RAID 驅動程

式的磁片。
