Serial number. Displays the serial number of the ASUS EZ-Backup Manager.

Drive status and information. Displays the current status and serial number of each drive member of the RAID set.

Below is a list of possible drive states:

1.Normal

2.Rebuilding

3.Verifying

4.Unplugged

5.Needs rebuild

6.New drive

7.Wrong slot

8.Use bigger drive

Capacity information. Displays the maximum capacity of each drive member of the RAID set.

Volume information. Shows the RAID mode, total volume of the RAID set, and maximum capacity of each drive member of the RAID set.

File menu

The File menu allows you to change the password, scan devices, change connection, and exit the ASUS EZ-Backup Manager.

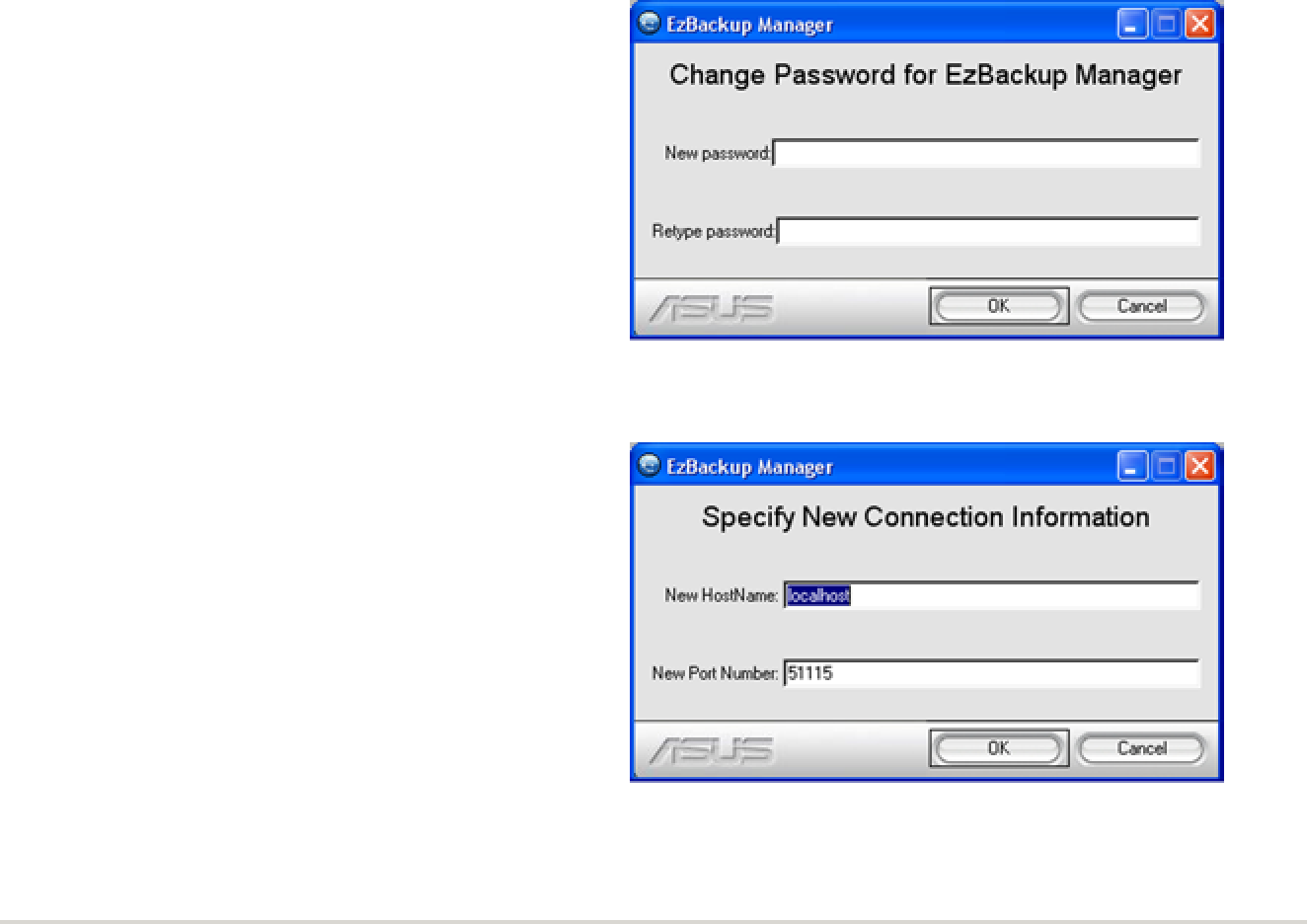

Change Password. Opens a dialog box that allows you to change the default password, admin. To change this, key in a new password, then retype the new password. Press <OK> to set.

Scan Devices. Refreshes the information shown on the status window.

Change Connection. Opens a dialog box that allows you to change remote connection settings.

Exit. Quits the ASUS EZ-Backup Manager.
