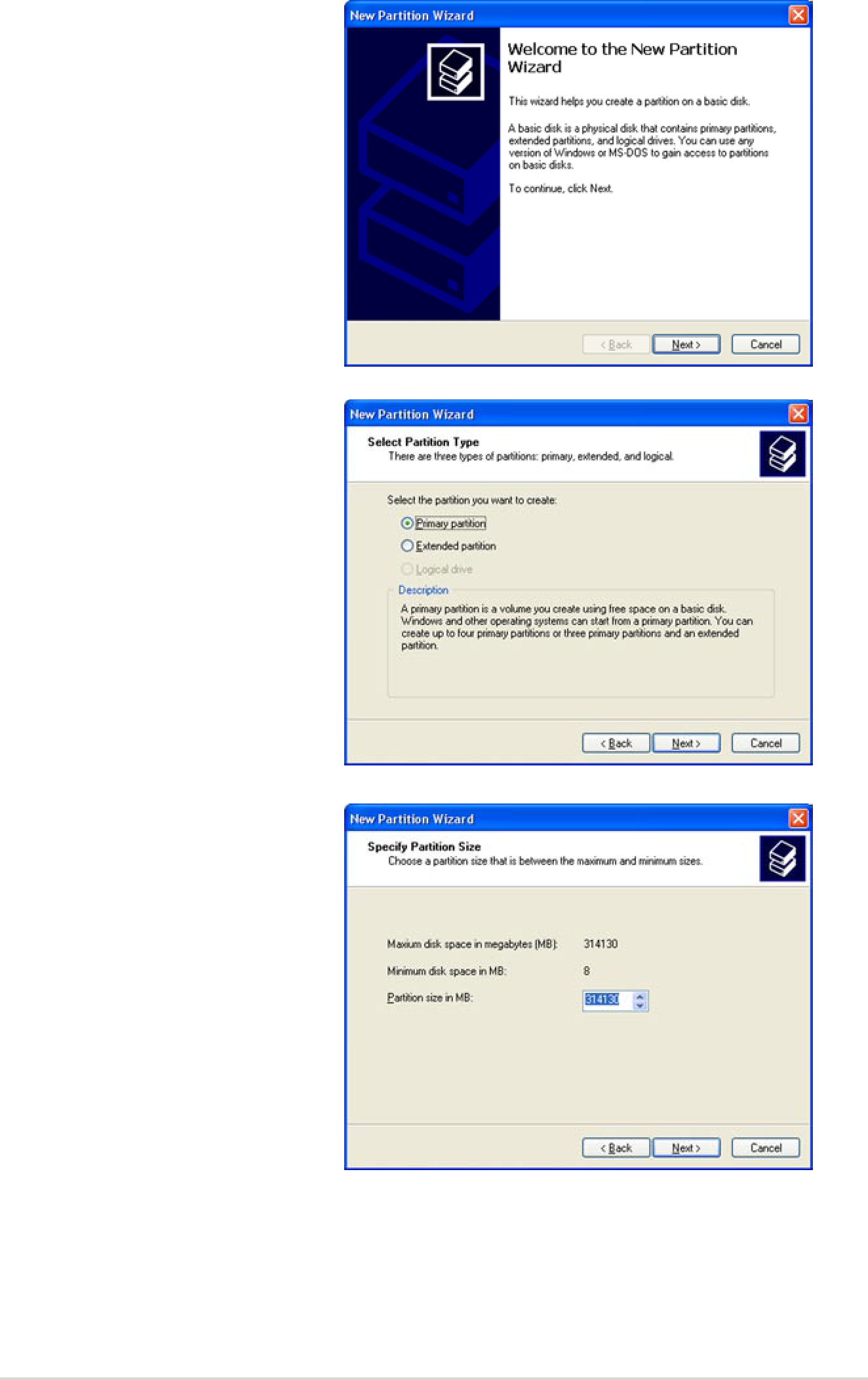

6.The Partition Wizard opens.

Click Next to start the partition process.

7.Select the type of partition you want to create.

Click Next.

8.Specify your desired partition size. The default partition size is the entire volume.

Click Next.

ASUS P5W DH Deluxe

5-57
