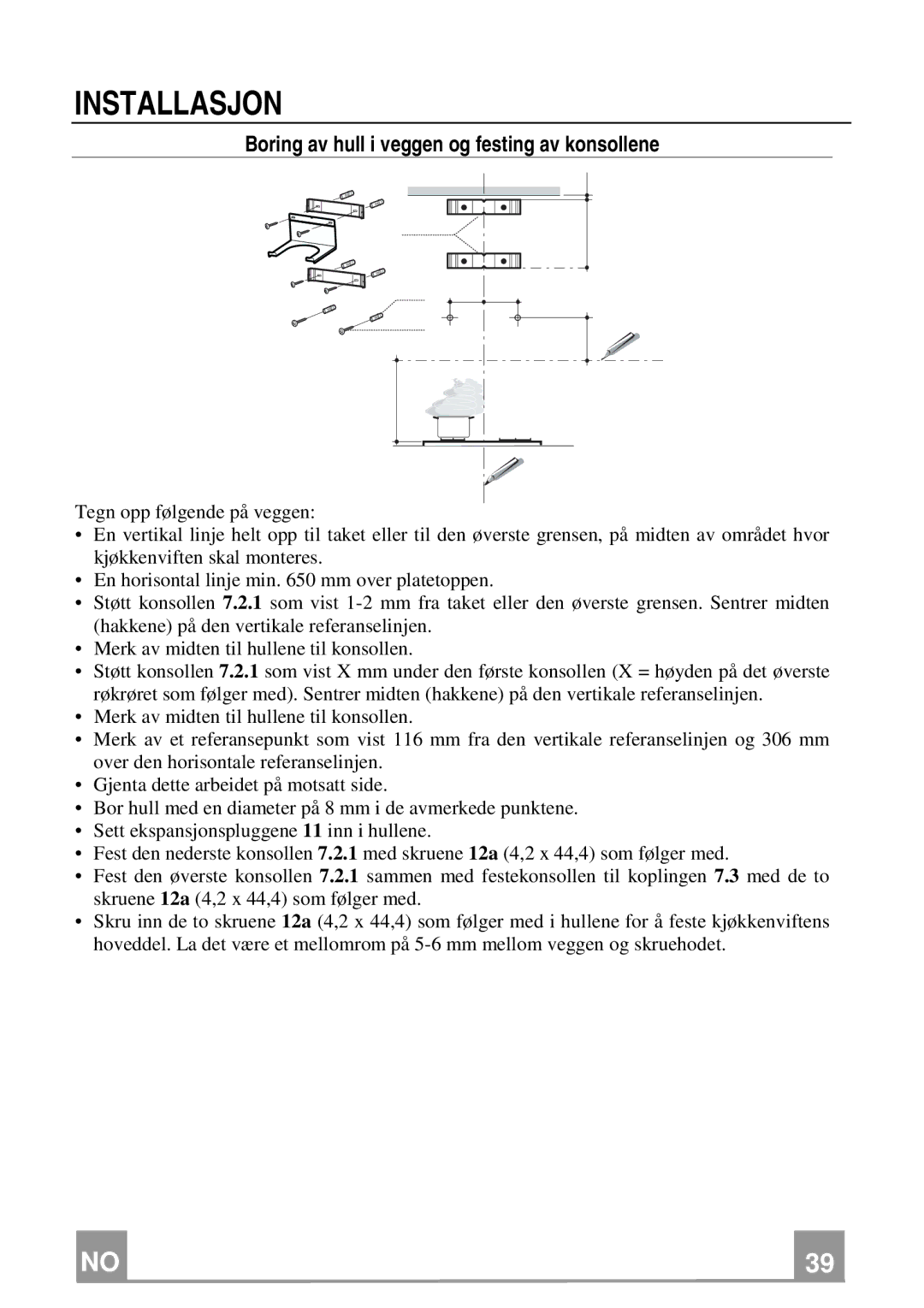

INSTALLASJON

Boring av hull i veggen og festing av konsollene

1÷2

7.2.1

11

116 116

12a



650 min.

306 X

Tegn opp følgende på veggen:

En vertikal linje helt opp til taket eller til den øverste grensen, på midten av området hvor kjøkkenviften skal monteres.

En horisontal linje min. 650 mm over platetoppen.

Støtt konsollen 7.2.1 som vist 1-2 mm fra taket eller den øverste grensen. Sentrer midten (hakkene) på den vertikale referanselinjen.

Merk av midten til hullene til konsollen.

Støtt konsollen 7.2.1 som vist X mm under den første konsollen (X = høyden på det øverste røkrøret som følger med). Sentrer midten (hakkene) på den vertikale referanselinjen.

Merk av midten til hullene til konsollen.

Merk av et referansepunkt som vist 116 mm fra den vertikale referanselinjen og 306 mm over den horisontale referanselinjen.

Gjenta dette arbeidet på motsatt side.

Bor hull med en diameter på 8 mm i de avmerkede punktene.

Sett ekspansjonspluggene 11 inn i hullene.

Fest den nederste konsollen 7.2.1 med skruene 12a (4,2 x 44,4) som følger med.

Fest den øverste konsollen 7.2.1 sammen med festekonsollen til koplingen 7.3 med de to skruene 12a (4,2 x 44,4) som følger med.

Skru inn de to skruene 12a (4,2 x 44,4) som følger med i hullene for å feste kjøkkenviftens hoveddel. La det være et mellomrom på 5-6 mm mellom veggen og skruehodet.

NO



3



39

Page 39
