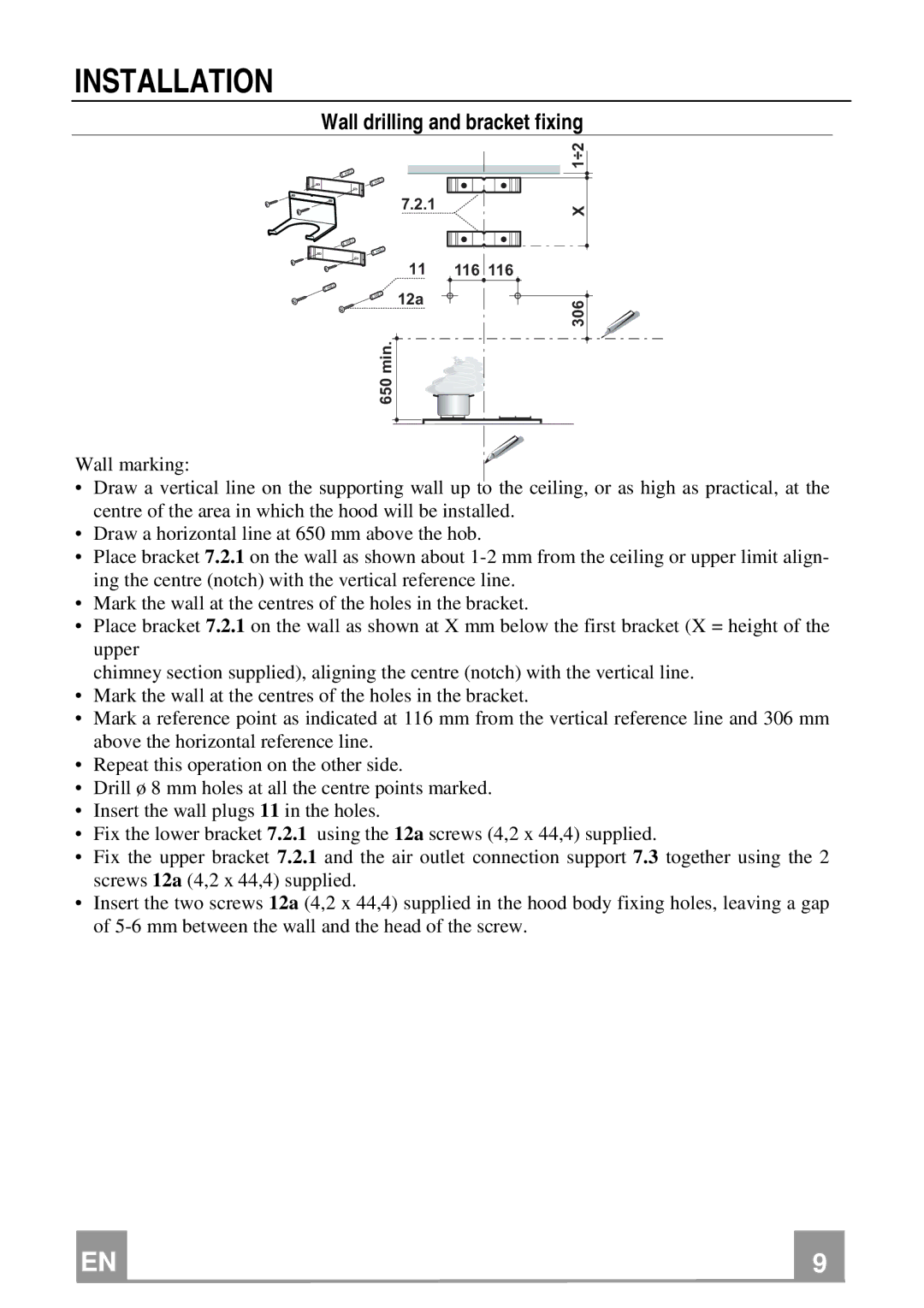

INSTALLATION

Wall drilling and bracket fixing

7.2.1

11

116 116

12a



650 min.

306 X 1÷2

Wall marking:

Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.

Draw a horizontal line at 650 mm above the hob.

Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align- ing the centre (notch) with the vertical reference line.

Mark the wall at the centres of the holes in the bracket.

Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

Mark the wall at the centres of the holes in the bracket.

Mark a reference point as indicated at 116 mm from the vertical reference line and 306 mm above the horizontal reference line.

Repeat this operation on the other side.

Drill ø 8 mm holes at all the centre points marked.

Insert the wall plugs 11 in the holes.

Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.

Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.

Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

EN



9



9
