Page 78

Manageable 8/9-Port Switch

PERFORMING ADVANCED SETUP ACTIVITIES

To Perform Advanced Setup Activities:

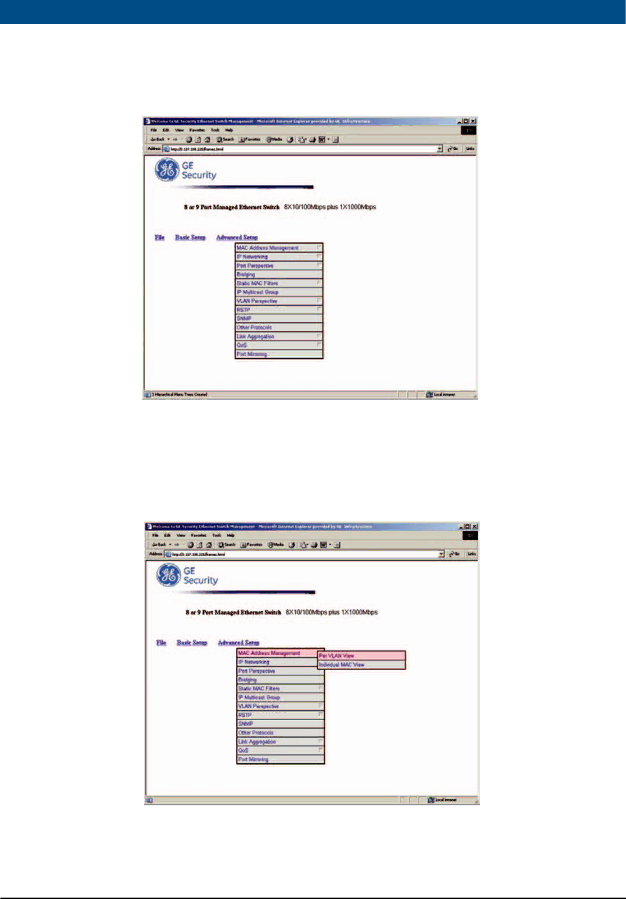

Click the [Advanced Setup] button at the upper field of the main display, the menu options appear.

MAC Address Management

Step 1:

From the Advanced Setup menu, point to MAC Address Management to view VLANs and their associated MAC addresses.

Step 2: Per VLAN View

Click Per VLAN View first and click on the port that you want to view.

Close the VLAN Activities window when finished viewing.

User’s Manual

74
