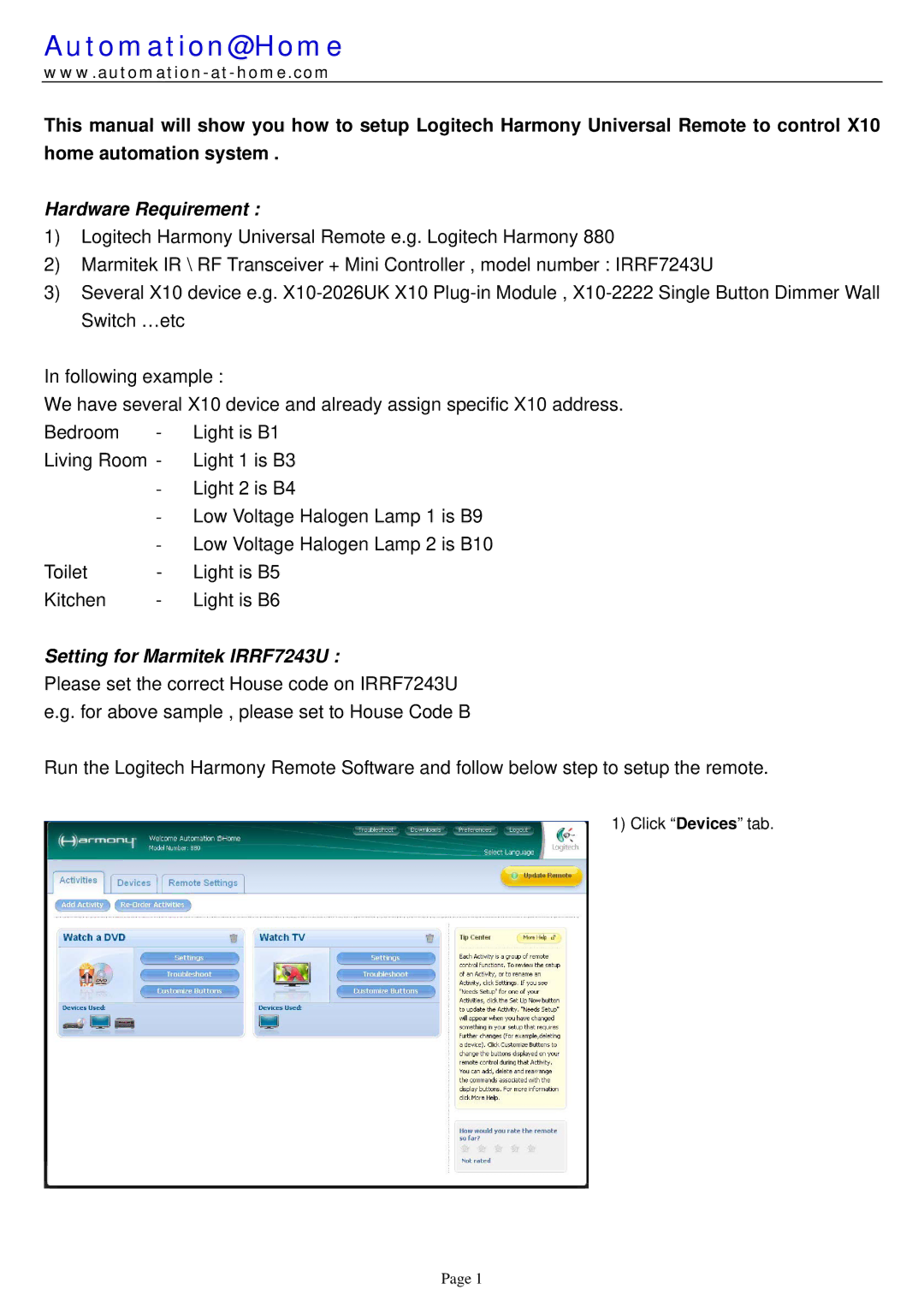

Logitech manual Automation@Home, Hardware Requirement, Setting for Marmitek IRRF7243U

Automation@Home

www.automation-at-home.com

This manual will show you how to setup Logitech Harmony Universal Remote to control X10 home automation system .

Hardware Requirement :

1)Logitech Harmony Universal Remote e.g. Logitech Harmony 880

2)Marmitek IR \ RF Transceiver + Mini Controller , model number : IRRF7243U

3)Several X10 device e.g. X10-2026UK X10 Plug-in Module , X10-2222 Single Button Dimmer Wall Switch …etc

In following example :

We have several X10 device and already assign specific X10 address.

Bedroom	-	Light is B1
Living Room -		Light 1 is B3
	-	Light 2 is B4
	-	Low Voltage Halogen Lamp 1 is B9
	-	Low Voltage Halogen Lamp 2 is B10
Toilet	-	Light is B5
Kitchen	-	Light is B6

Setting for Marmitek IRRF7243U :

Please set the correct House code on IRRF7243U e.g. for above sample , please set to House Code B

Run the Logitech Harmony Remote Software and follow below step to setup the remote.

1) Click “Devices” tab.

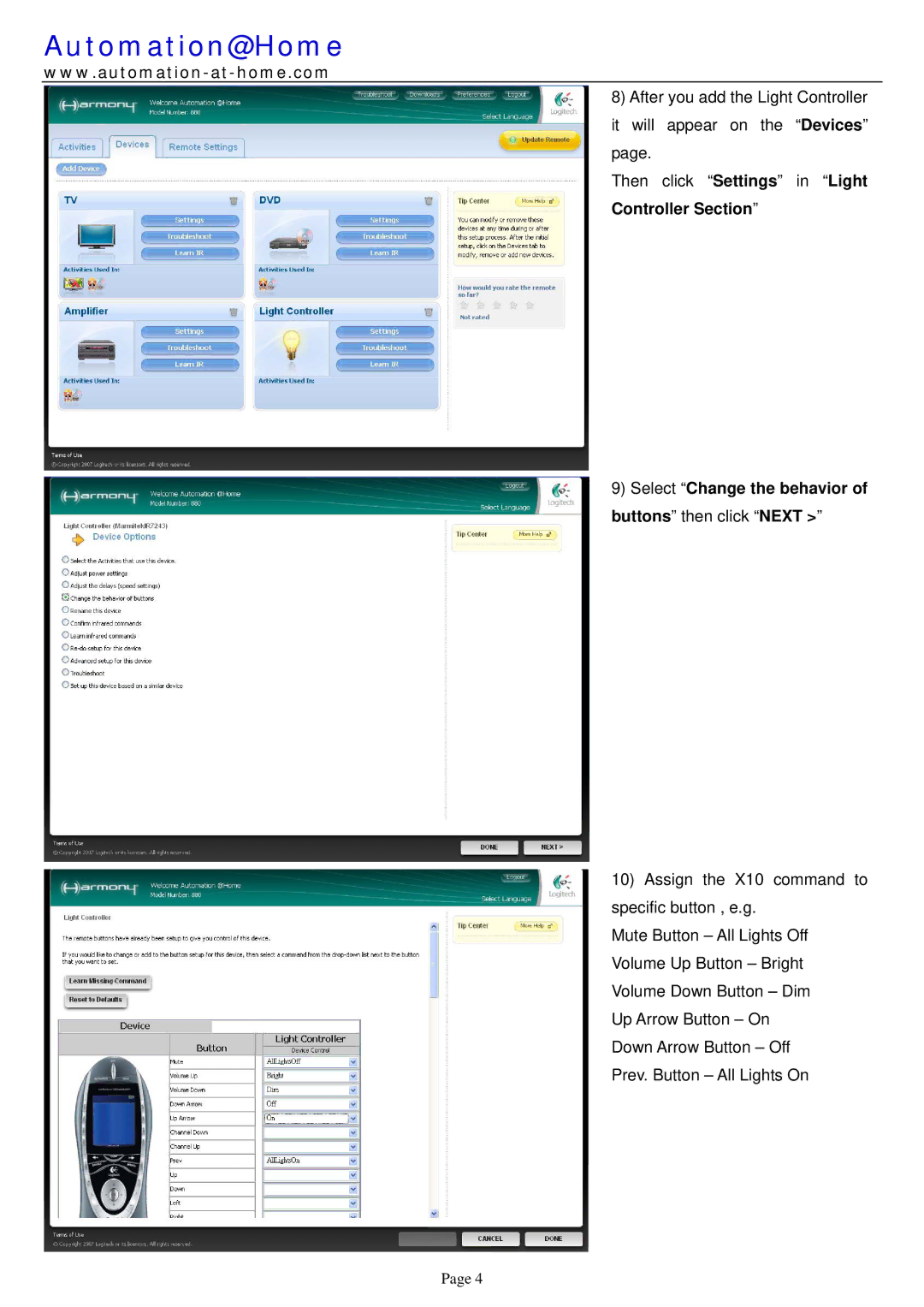

Page 1
