Page 61

REFERENCE

					VCR CONTROL
IN						PHONE JACK
FROM
ANT
	S-VIDEO	VIDEO	R AUDIO L	WIDE BAND DATA	SATELLITE IN	LOW SPEED DATA
	CH 4
OUT	CH 3				REMOTE IN
TO	CH 3				REMOTE IN
TV

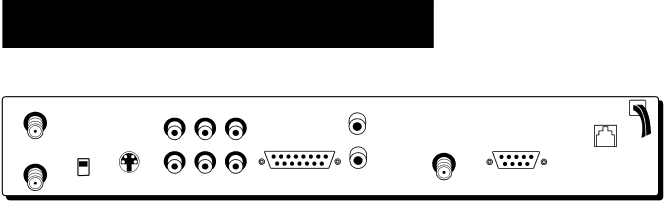

BACK PANEL CONTROLS

IN FROM ANT Use to connect an off-air antenna or cable TV signal to the DSS® system.

OUT TO TV Use to connect the DSS® receiver to your TV. However, if your TV has audio/video jacks, you should use those jacks to get better picture and sound quality.

CH3/CH4 SWITCH If a coaxial cable is used to connect the DSS® receiver to your TV, you must set the CH3/CH4 SWITCH. For example, to see the DSS® signal on TV channel 3, set the switch to 3.

S-VIDEOProvides the best picture quality. If your TV has S-VIDEO capability, use this jack along with the audio/video jacks to connect the DSS® receiver to your TV.

VIDEO Provides better picture quality than the OUT TO TV jack. If your TV has audio/video capability, use this jack to connect the DSS® receiver to your TV. You must also connect the AUDIO jacks.

AUDIO (R and L) Provide better sound quality than the OUT TO TV jack. If your TV has audio/video capability, use these jacks to connect the DSS® receiver to your TV. You must also connect the VIDEO jack.

WIDE BAND DATA PORT This port allows you to connect the DSS® system to future services and accessories. A shielded cable and additional hardware may be required.

LOW SPEED DATA PORT this port allows you to connect the DSS® system to accessories, such as the Home Control base module.

SATELLITE IN Use to connect the DSS® receiver to the satellite dish.

PHONE JACK Use to connect a phone line to the DSS® receiver. The DSS® system requires a phone line connection to periodically call out to program providers.

VCR CONTROL Allows the receiver to control your VCR.

REMOTE IN Use in conjunction with a remote control signal sender.

59
