Installing the Device

Rack Mounting the 2H253-25R

Proceed as follows to install the 2H253-25R into a 19-inch rack:

1.There are several mounting holes in the rackmount brackets and the bottom of the chassis so that each mounting bracket may be adjusted forward or backward to mount the device further into, or out of the rack, depending on the installation requirements. Position the rackmount brackets over the appropriate holes.

2.Locate the four 6-32 x 1/4-inch flathead screws in the rackmount kit. Use these screws to attach the rackmount brackets to the bottom of the 2H253-25R as shown in Figure 3-3.

Rackmount Bracket Screws

Rackmount Bracket









CONSOLE









TELCO





COM

25R-2H253























CPU



RESET























PWR





























SPD-DPX



23

21

19

17

15

13

11

9

7

5

3

1

TX-RX



MODE



24

22

20

18

16

14

12

10

8

6

4

2

LED

























SWITCH WORKGROUP ETHERNET FAST

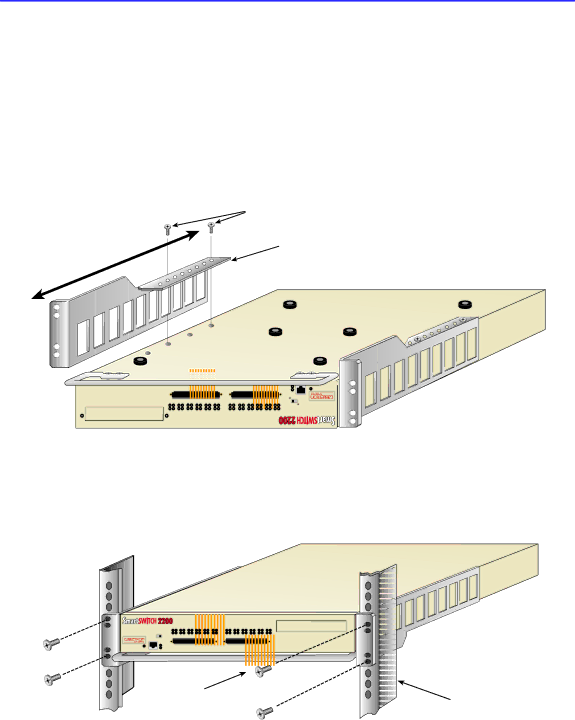

Figure 3-3 Attaching the Rackmount Brackets

27621-04

3.With the mounting brackets attached, position the 2H253-25R between the vertical frame members of the 19-inch rack and fasten it securely with mounting screws as shown in Figure 3-4.

FAST ETHERNET WORKGROUP SWITCH



























LED

2

4

6

8

10

12

14

16

18

20

22

24



MODE



RX-TX

1

3

5

7

9

11

13

15

17

19

21

23



DPX-SPD



























PWR

























2H253-25R

CPU

























COM



























Screws









































19-Inch Rack

27621-05

Figure 3-4 Installing the Device in a Rack

3-6Installation
