UL Guidelines for Rack Mounting

The following Underwriters Laboratories (UL) guidelines pertain to the installation of an IPL T CR48 unit onto a rack.

1.Elevated operating ambient — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature specified by the manufacturer [Tma = +32 to +122 °F (0 to +50 °C)].

2.Reduced air flow — Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

3.Mechanical loading — Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

4.Circuit overloading — Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

5.Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as the use of power strips).

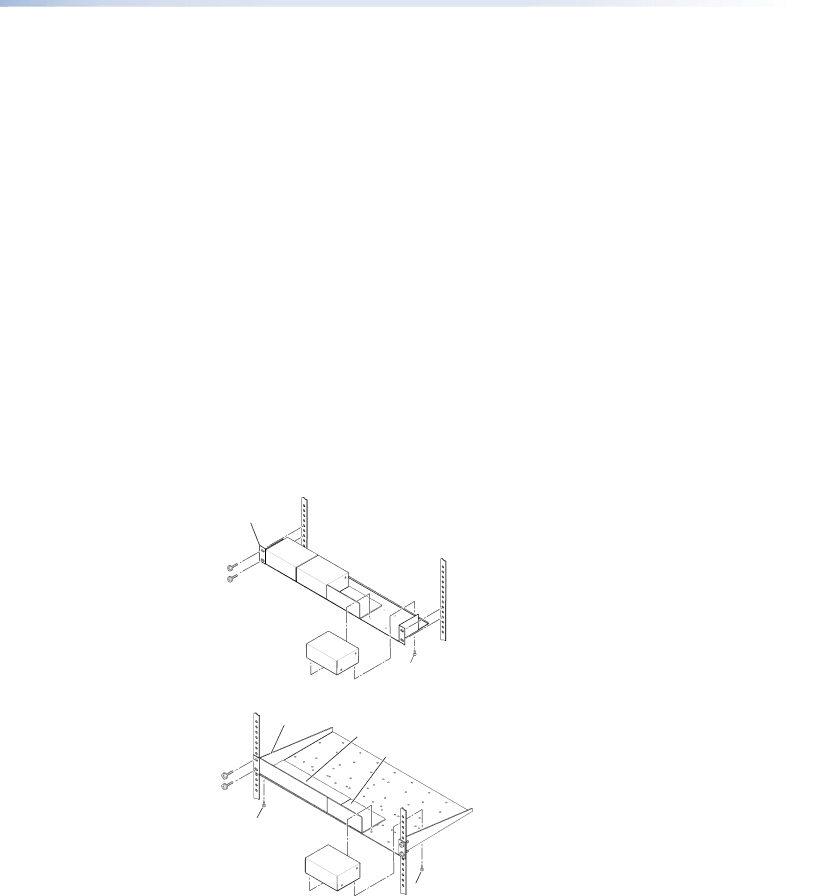

Rack Mounting

For optional rack mounting, mount the unit on an RSF 123 Rack Shelf

(part #60-190-20) (figure 1) or an RSU 129 Universal Rack Shelf (part #60-190-01) (figure 2).

RSF 123 Rack Shelf

1/4 Rack Width Front

False Faceplate

Use 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

Figure 1. Mounting the Unit on the RSF 123 Rack Shelf

1U Universal Rack Shelf

Both front false faceplates use 2 screws.

Use 2 mounting holes on opposite corners.

1/2 Rack Width Front False

Faceplate

1/4 Rack Width Front False

Faceplate

(2) 4-40 x 3/16" Screws

Figure 2. Mounting the Unit on the RSU 129 Universal Rack Shelf

IPL T CR48 • Installation and Operation

4
