InFocus 220, 210 manual Projected Image Size, Lenses

Page 77

A p p e n d i x

Projected Image Size

Use the chart below and the tables on the next page to help you determine projected image sizes for the varifocal and zoom

lenses.

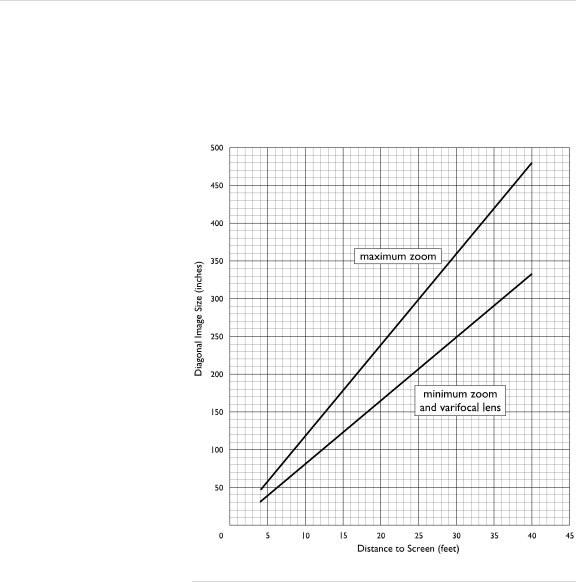

FIGURE 44

Projected image size for LitePro 200 series zoom and varifocal lenses

64

Image 77
