Intellinet Network Solutions 530361 user manual Access control

Page 28

access control

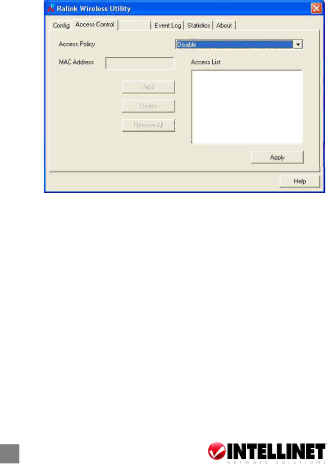

This screen lets you configure the access control policy used within the access point.

MAC Table

Access Policy: Select from the drop-down menu.

•Disable: Disables the MAC address filtering function.

•Allow All: Only wireless adapters with a MAC address on the access list can connect to the AP.

•Reject All: Wireless adapters with a MAC address on the access list will be prevented from connecting to the AP.

MAC Address: This is the unique 12-digit hexadecimal identification for hardware devices in the network.

Access List: Displays all the MAC address that have been added.

•Add: Add the MAC address to the access list.

•Delete: Delete the selected MAC address from the access list.

•Remove All: Remove all MAC addresses from the access list.

Apply: Click to apply the setting change(s).

28softap
