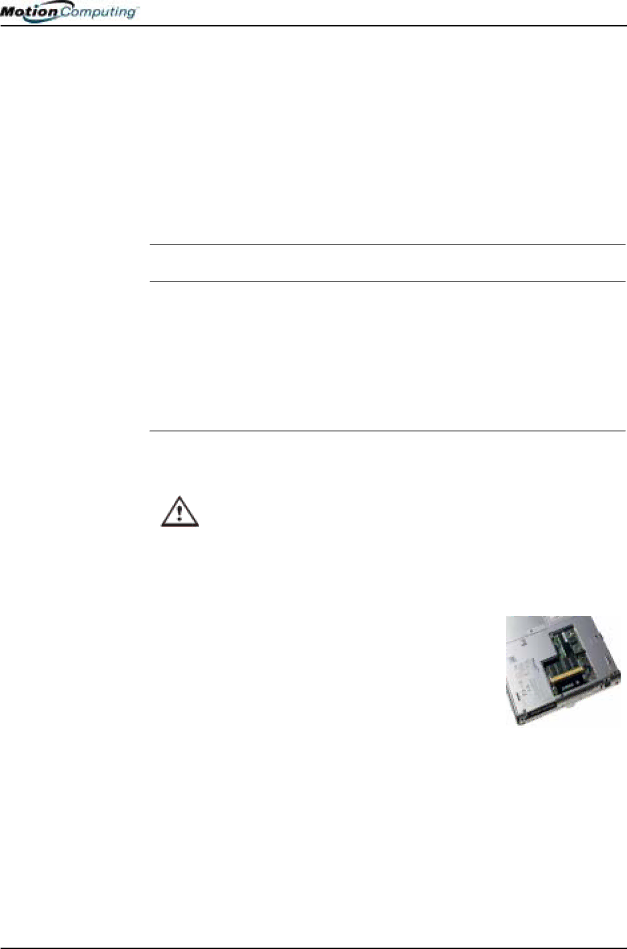

Chapter 4 Using Your Motion M1200 and M1300 Tablet PCs

ADDING

MEMORY TO

IMPROVE

SYSTEM

PERFORMANCE

AND INCREASE

BATTERY LIFE

Use only Motion M-Series Memory modules obtained from Motion Computing to upgrade the factory-installed memory.

Supported Memory Configurations for Motion M1200

Base Memory-Slot A*

Base Upgrade-Slot B*

Total Memory







256MB

256MB

512MB









512MB

768MB







512MB

256MB

768MB









512MB

1GB







* PC133 SDRAM SODIMM

Note: The Motion M1200 has Base Memory factory-installed in Slot A. You can install/reinstall memory modules in either Slot A or B for best performance.

Supported Memory Configurations for Motion M1200

Base Memory-Slot A**

Base Upgrade-Slot B**

Total Memory







256MB

256MB

512MB







512MB



768MB







256MB

512MB

768MB







512MB



1GB







** PC266 DDR SODIMM





Note: The Motion M1300 has Based Memory factory-installed in Slot B. If you install/reinstall only a single memory module in the M1300, always install it in Slot B for best performance.

WARNING: To avoid the risk of personal injury or damage to the Tablet PC, when performing the following tasks, turn off your Tablet PC, unplug the AC power connection, and remove the battery. Ground yourself by touching a grounded conductive surface, such as a device or appliance with a grounded, three-pronged plug. Avoid touching the pins and leads

on the memory module and the internal circuitry of the Tablet PC.

1.After you disconnect power, unscrew the L- shaped cover from the bottom of the Tablet PC.

2.If you are replacing a module, release the clips on each side of the module and lift to remove it.

3.Align the pins on the Memory Upgrade module with the receptors on the slot.

4.Gently push the new module into the slot at a

25-degree angle until it is firmly seated; then rotate it into place.

5.Replace the external cover and install the two screws.

6.To check that the Memory Upgrade has been properly installed, select Start, My Computer, View System Information. The General tab shows the amount of RAM (memory) installed in your system.

NOTE: If the amount of RAM shown and the actual RAM differ, the Memory Upgrade module may not be seated properly. Repeat Steps 1-5, taking care to re-seat the module correctly.

Motion Computing M1200 and M1300 Tablet PC User Guide 45
