Rebooting the System

NOTE – When entering the server name for firmware upgrade, make sure the Fully Qualified Domain Name (FQDN) is entered (for example, abc.ruckuswireless.com).

Performing a Firmware Upgrade Using HTTP

1.If you want to perform the download using HTTP, then check Web as the upgrade method after choosing Maintenance->Upgrade. The window of Figure 25 appears.

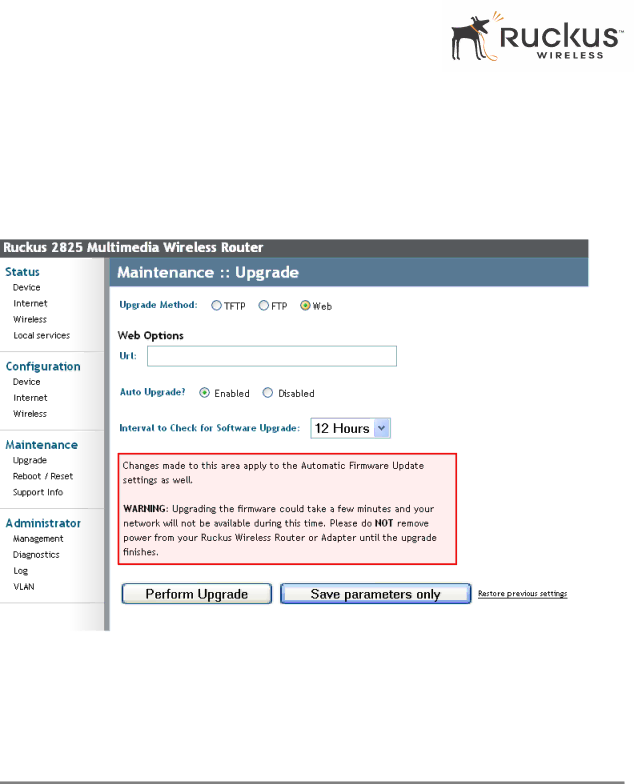

Figure 25—Maintenance->Upgrade—Web/HTTP

2.Enter the URL of the web server and the image control file name.

3.If you want to enable Auto Upgrade, click Enabled, and specify the interval to check for upgrades. Refer to the instructions in Performing a Firmware Upgrade by TFTP on page 44.

4.Click Perform Upgrade when you are done. The window of Figure 23 appears.

Rebooting the System

Two types of reboot are provided:

The Reboot Now button re-starts the system. All the configurations that have been saved are preserved through the reboot.

• Make sure you save your settings before you reboot.

46

Ruckus Wireless 2825 Wireless Multimedia Router

USM-2825-RKS1-012907-01
