2-18CHAPTER 2: OVERVIEW

RS-232 to RS-232 Direct Connect Cable

This cable connects the RS-232 port on the bridge/router to an RS-232 port on an SNA legacy device.


To RS-232 port on bridge/router																To SNA device
1	2	3	4	5	6	7	8	9	10		11 12		13	1	2	3	4	5	6	7	8	9	10	11 12		13
14	15	16	17	18	19	20	21 22			23	24	25		14 15		16	17 18		19	20	21	22 23		24	25
25-pin male connector														25-pin male connector

Name	Abbr
Shield	Chas. GND
Clear to Send	CTS
Transmit Data	TxD
Receive Data	RxD
Request to Send	RTS
DCE Ready	DSR
Signal Ground	GND
DTE Ready	DTR
Receive Clock - DCE Source	RxC(SCR)
Transmit Clock - DTE Source	TT(SCTE)
Secondary Receive Data	SRD

Pin

1

5

2

3

4

6

7

20

17

24

16

Pin
1
5
3
2
8
20
7
6
24
15
17

Abbr	Name
Chas. GND	Shield
CTS	Clear to Send
RxD	Receive Data
TxD	Transmit Data
CD	Carrier Detect
DTR	DTE Ready
GND	Signal Ground
DSR	DCE Ready
TT(SCTE)	Transmit Clock - DTE Source
TxC(SCT)	Transmit Clock - DCE Source
RxC(SCR)	Receive Clock - DCE Source

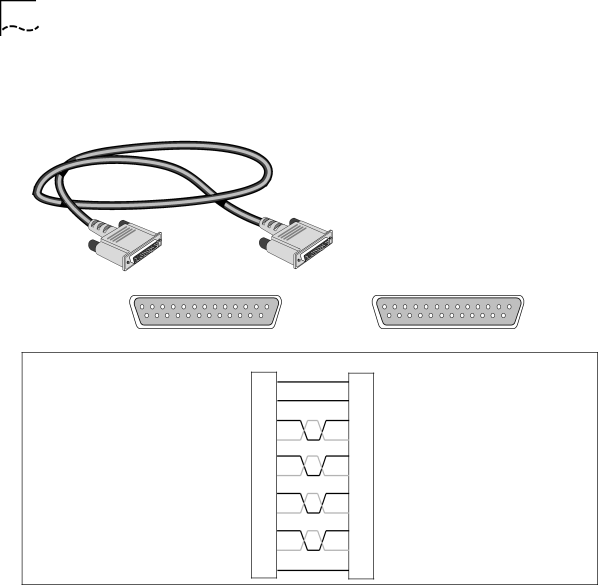

Figure 2-15RS-232 to RS-232 Direct-Connect Cable

You can order this cable from 3Com (part number 3C8132).
